HPM600U/UC25-II

0.1-600 rpm

0.347-3300mL/min

Optional pump head：

UC25-II

Online consultation

Download

Product Introduction
Technical Parameter
Pump Head Parameter

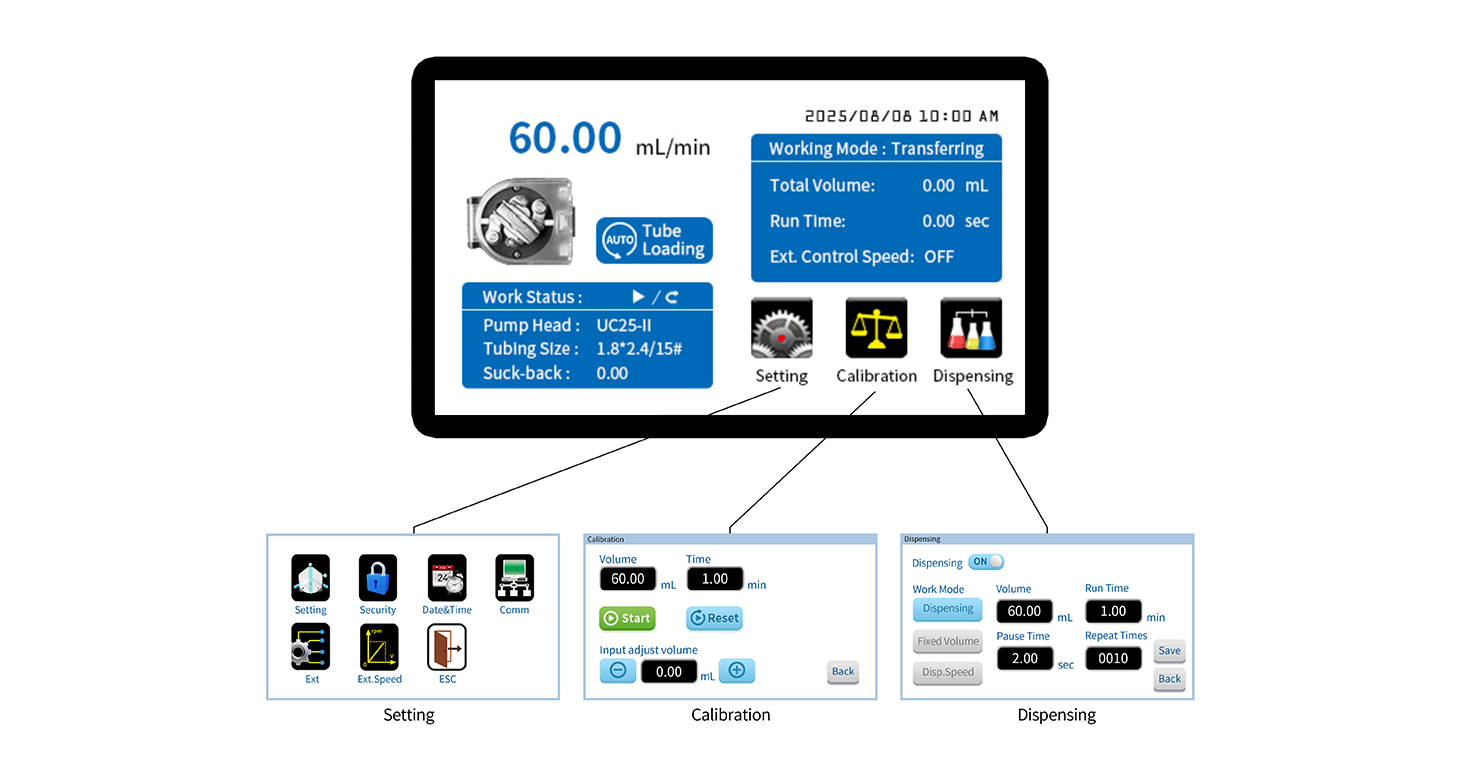

OSD

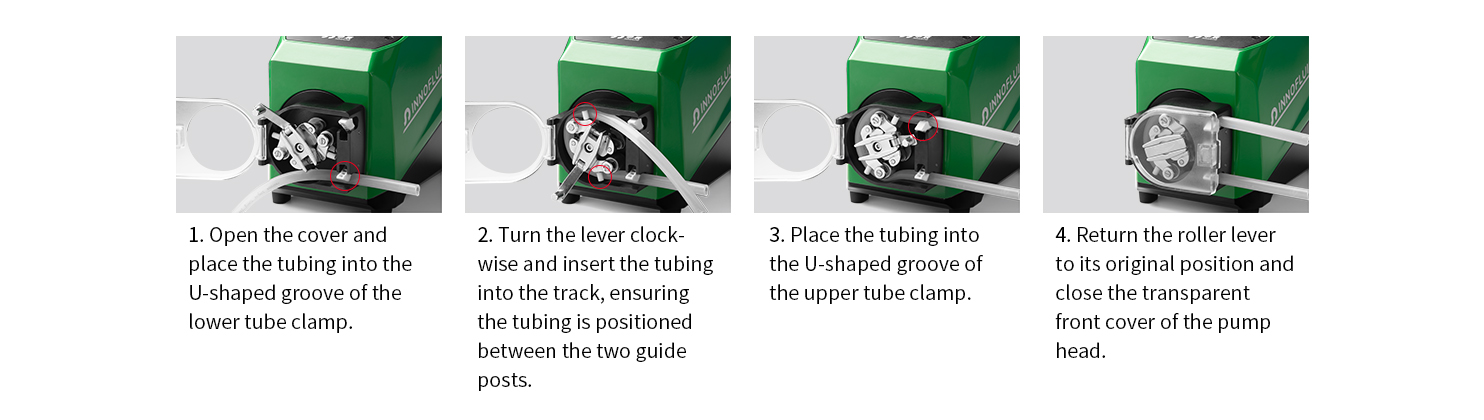

Tubing Installation Procedure
Qualification Certificate

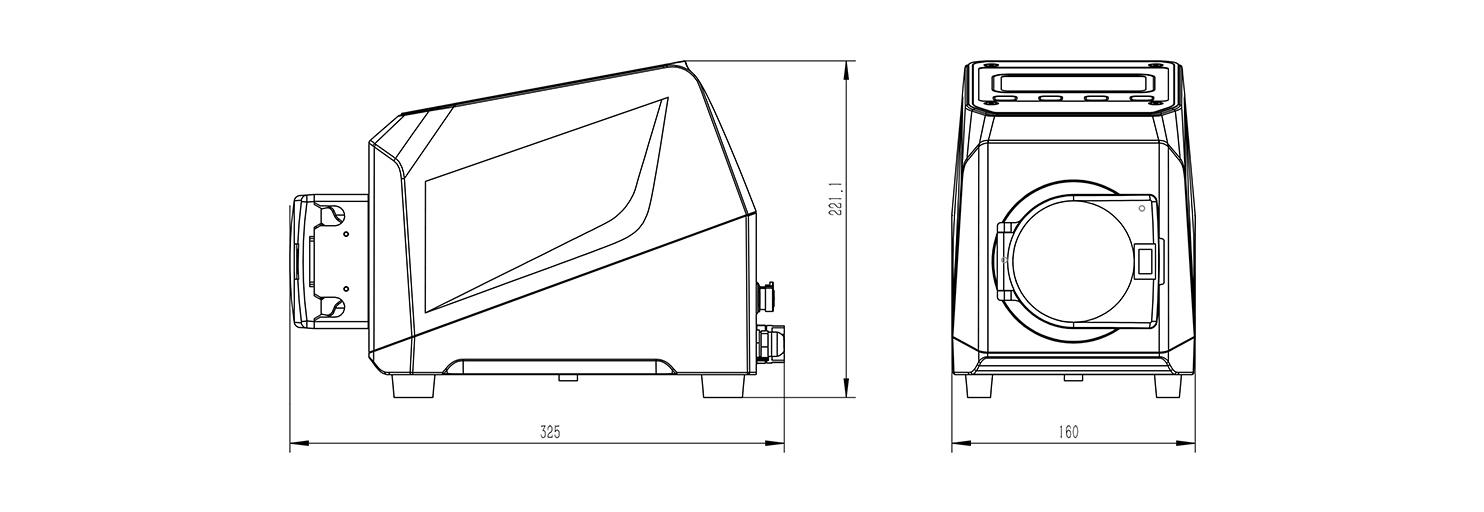

Dimension
Video Tutorials

Product Introduction

The pump shell protection level is IP66, specially designed for industrial environments. It features 6 types of sealing structures that withstand extreme humidity and temperature conditions, ensuring long-term stable operation.
The intelligent control system supports both transferring and dispensing functions.
The 4.3-inch touch screen enables simplified operation, parameter configuration, and calibration.
Circuit isolation is achieved both inside and outside the external control interface.
Aluminum alloy body with excellent heat dissipation performance.
Three levels of permissions management function.
Open pump head cover to stop machine.
Equipped with spring roller pump head, stable transfer.
Added auxiliary tube loading function.

Technical Parameter

EMC Standard	IEC 61000-6-2/IEC 61000-6-4/IEC 61000-3-2/IEC 61000-3-3
Housing material	Aluminum alloy
Speed range	0.1-600 rpm
Speed adjustment resolution	0.01 rpm
Display	4.3-inch industrial-grade color LCD screen
Control modes	Touch screen, mechanical keypad, external control signal, communication control
Working modes	Transferring mode, dispensing mode (Fixed volume, dispensing, speed dispensing)
Transferring mode	Continuous operation at set flow rate and speed
Dispensing mode	Dispensing:Set volume, time, repeat numbers, pause time Dispensing:Set volume, flow rate, repeat numbers, pause time Speed dispensing:Set speed (rpm), time, repeat numbers, pause time
Dispensing volume range	0.1 mL - 9999 L
Dispensing time range	0.1 s - 9999 h
Pause time range	0.5 s - 9999 h
Repeat numbers	1-9999 times, 0 means unlimited times
Calibration	Automatic calibration after inputting actual liquid volume
Back suction angle	0-360°
Communication interface	RS485
Communication protocol	Modbus protocol (RTU mode)
External control speed signal	0-5 V, 0-10 V, 4-20 mA (optional)
External control signal input	Active switch signal (5-24 V) controls start/stop, direction; Passive switch signal controls start/stop
Signal output	Open collector output operation status; 4-20 mA output
Open cover to stop pump function	Prevent misoperation and protect user safety
Three levels of permissions	Reasonable configuration of operation permissions
Drive dimension	274 × 160 × 221 mm (L×W×H)
Power supply	AC 110-220 V ±10%, 50/60 Hz
Rated power	110 W
Working environment	0-40 °C
Drive weight	6.2 kg
Relative humidity	<100%
Protection level	IP66

Pump Head Parameter

ModelNo.	Tubing Size	ID x Wall Thickness(mm)	Flow Rate(mL/min) (0.1-600rpm)	Tubing maximum pressure(Mpa)
				Continuous	Intermittent
UC25-II	15#	4.8x2.4	0.347-2082	0.27	0.17
	24#	6.4x2.4	0.550-3300
