Name: Fluid Pulse Damper
Effectively solve the shortcomings of pulsating fluids, especially the unstable water flow of peristaltic pumps.
Suitable sites: laboratory, chemical, pharmaceutical, food industry cause of simple principle and construction, easy to maintain, good applicability.
In the medical field, it can be used for blood pulse rectification of blood transfusion pump.
The pulse of D1606 series in the typical application can reach to over 95% at the inhibition ratio. Two dampers in serial to reach more higher pulse rectification over 99%.
| Name | Photo | Note | Model No. | Suitable Tubing Size |

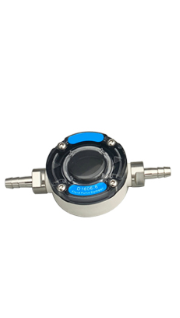

| Fluid Pulse Damper-General type |  |
PC+Silicone Film+SS316 connector | D1606-3NB-PC-316 | 13#，14# |
| D1606-3ND-PC-316 | 19#，16# | |||
| D1606-6NB-PC-316 | 25#/15# | |||
| D1606-6ND-PC-316 | 17#/24#，18#/35# | |||
| PC+Silicone Film+SS316 connector | D1606-10-PC-316 | 36#，73# | ||
| D1606-12-PC-316 | 82#，88# | |||
| D1606-25-PC-316 | 92# | |||

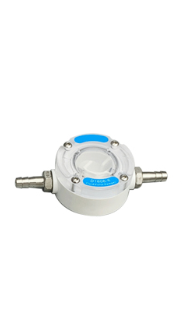

| Fluid Pulse Damper-Medical type(for food and medical) |  |
PSU+Silicone Film+SS316 connector | D1606-3NB-PSU-316 | 13#，14# |
| D1606-3ND-PSU-316 | 19#,16# | |||
| D1606-6NB-PSU-316 | 25#/15# | |||
| D1606-6ND-PSU-316 | 17#/24#，18#/35# | |||
| D1606-12-PSU-316-ODM | 82#，88# | |||
| Fluid Pulse Damper-Industrial type(For chemistry and corrosive liquid) |  |
PPS+FKM film+SS316 connector | D1606F-3NB-PPS-316 | 13#，14# |
| D1606F-3ND-PPS-316 | 19#，16# | |||
| D1606F-6NB-PPS-316 | 25#/15# | |||
| D1606F-6ND-PPS-316 | 17#/24#，18#/35# | |||
| PTFE+FKM film+SS316 connector | D1606F-10-PTFE-316 | 36#，73# | ||
| D1606F-12-PTFE-316 | 82#，88# | |||
| D1606F-25-PTFE-316 | 92# |
