- TYGON® A-60-G tubing with superior weather resistance and abrasion resistance.
- It will not weaken or crack after years of exposure to heat and ozone, providing longer peristaltic pump life in industrial and institutional cleaning-chemical dispensing applications.
- Wide temperature range: -60℃ to 135℃ (-75°F to 275°F).
- Compare with rubber tube, it has better air tightness.
- It is heat sealable and can be joined without fittings.
| SPECIFICATION | MODEL | INTERNAL DIAMETER(ID) | OUTSIDE DIAMETER(OD) | WALL THICKNESS | LENGTH(M/PKG) | |||
| INCH | MM | INCH | MM | INCH | MM | |||
| 14# | AFL00003 | 1/16 | 1.6 | 3/16 | 4.8 | 1/16 | 1.6 | 15.2M |
| 16# | AFL00007 | 1/8 | 3.2 | 1/4 | 6.4 | 1/16 | 1.6 | |
| 25# | AFL00012 | 3/16 | 4.8 | 5/16 | 8 | 1/16 | 1.6 | |
| 17# | AFL00017 | 1/4 | 6.4 | 3/8 | 9.5 | 1/16 | 1.6 | |
| 18# | AFL00022 | 5/16 | 8 | 7/16 | 11.1 | 1/16 | 1.6 | |
| 15# | AFL00013 | 3/16 | 4.8 | 3/8 | 9.5 | 3/32 | 2.4 | |
| 24# | AFL00018 | 1/4 | 6.4 | 7/16 | 11.1 | 3/32 | 2.4 | |
| 35# | AFL00023 | 5/16 | 7.9 | 1/2 | 12.7 | 3/32 | 2.4 | |
| 36# | AFL00028 | 3/8 | 9.5 | 9/16 | 14.3 | 3/32 | 2.4 | |
| 73# | AFL00029 | 3/8 | 9.5 | 5/8 | 15.9 | 1/8 | 3.2 | |
| 82# | AFL00038 | 1/2 | 12.5 | 3/4 | 19.1 | 1/8 | 3.2 | |

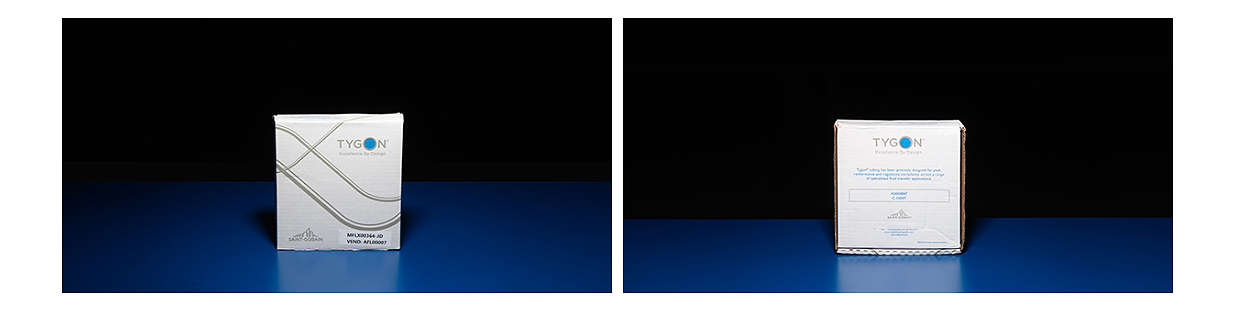

Individually packaged in original cartons
