Versilon F-5500-A

Product Introduction

  • Saint-Gobain Versilon F-5500-A tubing provides excellent resistance to corrosive chemicals, oils, fuels, solvents, and most mineral acids, also resistance to many aliphatic and aromatic carbohydrates.
  • Resists ozone, sunlight and weathering.
  • Opaque black color helps protect light-sensitive fluids.
  • Provides continuous service at temperatures up to 400°F (204℃).
  • Highly flexible and resilient, making it the ideal choice in peristaltic pumping of extremely corrosive materials.

Technical Parameter

Brand Saint-GobainVersilonF-5500-A
Hardness (Shore A) 60
Tensile Strength psi(Mpa） 1400(9.3)
Elongation % 300
Tear Strength Ib-f/in(KN/m) 100（17.5）
Proportion 1.9
Water Absorption，%24hrs.@23℃ 0.23
Temperature Resistance -51℃—204℃
Constant compression set rate,%22hrs.@70℃ 37

Specification Parameters

SPECIFICATION MODEL INTERNAL DIAMETER(ID) OUTSIDE DIAMETER(OD) WALL THICKNESS LENGTH(M/PKG)
INCH MM INCH MM INCH MM
16# AGN00007 1/8 3.2 1/4 6.4 1/16 1.6 15.2M

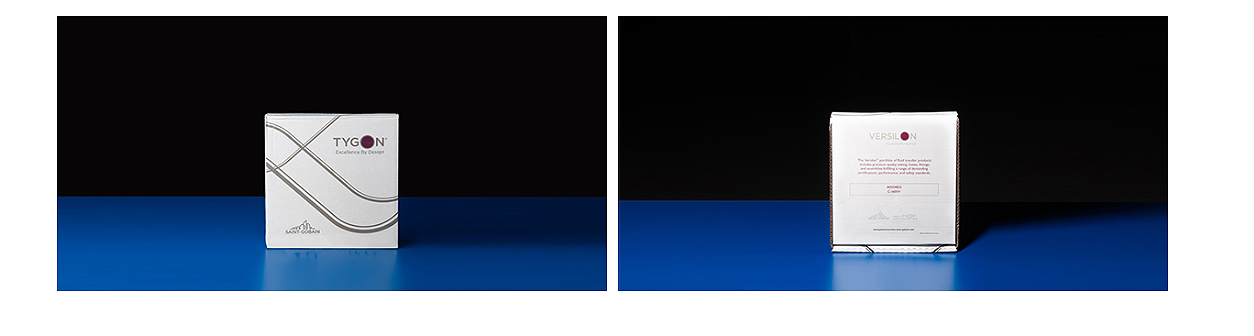

Product Packaging

Individually packaged in original cartons
