- The smooth inner bore reduces potential for particle entrapment.
- The inner surface of Tygon platinum-cured silicone tubing compare to other silicone tubing is up to three times smoother.
- Lower extractable help to maintain the integrity of the transported fluid media.
- Low compression set, odorless and non-toxic.
- Conform to USP CLASS VI, FDA and NSF 51 standards.
- Conform to ISO 10993 biocompatibility standards.
- Hydrophobic inner surface to improve liquid mobility.
- High temperature resistance, can work normally at 204 ℃.
| SPECIFICATION | MODEL | INTERNAL DIAMETER(ID) | OUTSIDE DIAMETER(OD) | WALL THICKNESS | LENGTH(M/PKG) | |||
| INCH | MM | INCH | MM | INCH | MM | |||
| 14# | ABW00003 | 1/16 | 1.6 | 3/16 | 4.8 | 1/16 | 1.6 | 15.2M |
| 19# | 9570204 | 3/32 | 2.4 | 7/32 | 5.6 | 1/16 | 1.6 | |
| 16# | ABW00007 | 1/8 | 3.2 | 1/4 | 6.4 | 1/16 | 1.6 | |
| 25# | ABW00012 | 3/16 | 4.8 | 5/16 | 8 | 1/16 | 1.6 | |
| 17# | ABW00017 | 1/4 | 6.4 | 3/8 | 9.5 | 1/16 | 1.6 | |
| 18# | ABW00022 | 5/16 | 8.0 | 7/16 | 11.1 | 1/16 | 1.6 | |
| 15# | ABW00013 | 3/16 | 4.8 | 6/16 | 9.5 | 3/32 | 2.4 | |
| 24# | ABW00018 | 1/4 | 6.4 | 7/16 | 11.1 | 3/32 | 2.4 | |
| 35# | ABW00023 | 5/16 | 7.9 | 1/2 | 12.7 | 3/32 | 2.4 | |
| 36# | ABW00028 | 3/8 | 9.5 | 9/16 | 14.3 | 3/32 | 2.4 | |
| 73# | ABW00029 | 3/8 | 9.5 | 5/8 | 15.9 | 1/8 | 3.2 | |
| 82# | ABW00038 | 1/2 | 12.5 | 3/4 | 19.1 | 1/8 | 3.2 | |

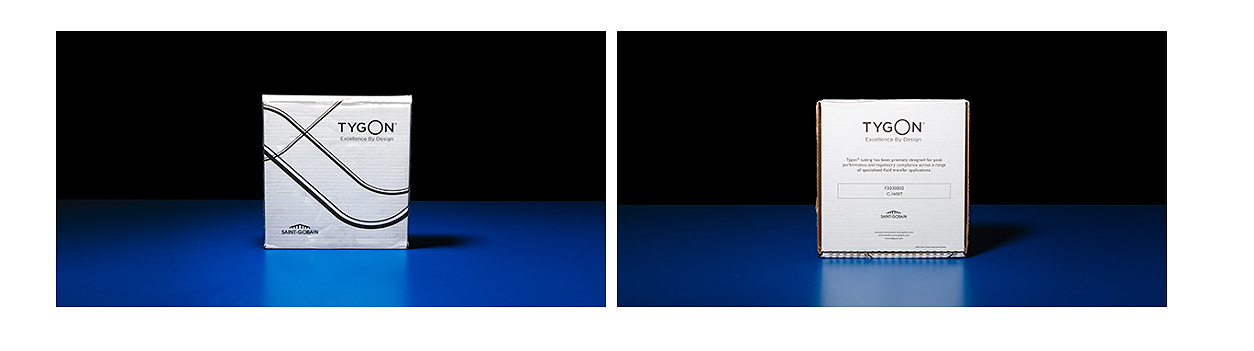

Individually packaged in original cartons in compliance with GMP regulations
Use packaging bags that do not contain phthalates
