Tygon® F-4040-A

Product Introduction

  • Anti-brittle.
  • Compatible with most petroleum-based products, hydrocarbons, and resistant to swelling and hardening.
  • High performance tube for small motor fuel and industrial lubricants, specially developed for transporting fuel and lubricants. It is commonly used for the transmission of gasoline, kerosene, civil combustion oil, cutting oil and glycol-based coolants.
  • Low leaching,Low extractability protects the transported fluid or steam from incorporation of impurities.
  • Resistant to ozone and ultraviolet radiation.
  • Good flexibility.

Technical Parameter

Brand Saint-Gobain/Masterflex Tygon? F-4040-A
Hardness(Shore A) 57
Tensile Strength psi(Mpa) 1820(12.5)
Elongation % 310
Tear Strength lb-f/in(KN/m) 167(29.0)
Proportion 1.26
Water Absorption，%24hrs.@23℃ 0.49
Brittleness temperature -37℃
Constant compression set rate,%22hrs.@70℃ 65
Recommended maximum operating temperature 74℃

Specification Parameters

SPECIFICATION MODEL INTERNAL DIAMETER(ID) OUTSIDE DIAMETER(OD) WALL THICKNESS LENGTH(M/PKG)
INCH MM INCH MM INCH MM
13# 0640113 1/32 0.8 5/32 4 1/16 1.6 15.2
14# 0640114 1/16 1.6 3/16 4.8 1/16 1.6
16# AAG00007 1/8 3.2 1/4 6.4 1/16 1.6
25# AAG00012 3/16 4.8 5/16 8 1/16 1.6
17# AAG00017 1/4 6.4 3/8 9.5 1/16 1.6
24# 0640124 1/4 6.4 7/16 11.1 3/32 2.4
36# 0640136 3/8 9.5 9/16 14.3 3/32 2.4
82# AAG00038 1/2 12.5 3/4 19.1 1/8 3.2

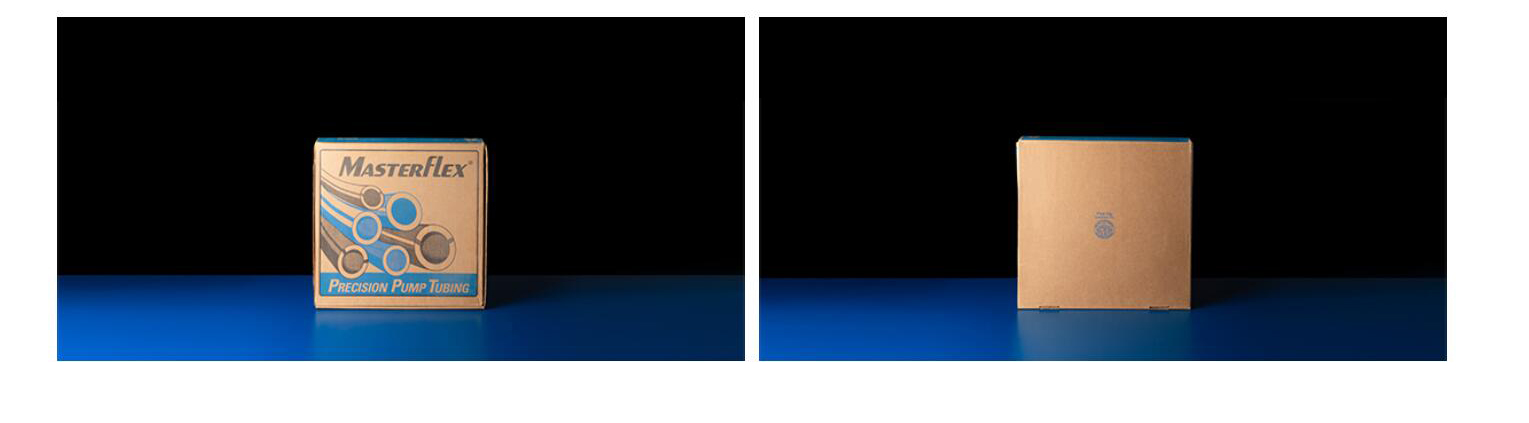

Product Packaging

Original factory paper box for independent packaging
