BT300N
    Speed range：0.1-350 rpm
    Flow range：0.0053-1505 mL/min
Optional pump head：
EasyPump
AMC
YZ1515x
YZ2515x
Online consultation
Download

Product Introduction

  • Ultra-quiet drive design, precision control, little vibration and noise.
  • Plastic-coated metal housing, compact structure.
  • Timing function, time range 0.5s-999s, can be used for simple dispensing.
  • RS232, RS485 communication interface. Supports Shenchen communication protocol or standard Modbus communication protocol (RTU mode).

Technical Parameter

Flow rate range 0.0002-1505mL/min
Speed range 0.1-350rpm
Speed resolution 0-100rpm, 0.1rpm; 100-600rpm, 1rpm
Testing time range 0.5sec-999sec
Outlet pressure 0.8~1.0mm wall thickness tubing: 0.1MPa; 1.6~2.4mm wall thickness tubing: 0.1~0.27MPa
Display LED Display
Control method Mechanical keypad
Keypad lifetime 300,000 times
External speed control signal 0-5V, 0-10V, 4-20mA optional
Start/stop, reversing signal Passive switch signal, such as foot pedal; Active switch signal: 5V,12V,24V optional
Communication interface RS232, RS485 support Modbus protocol (RTU mode)
Power supply AC 220V±10% 50Hz/60Hz (standard), AC 110V±10% 50Hz/60Hz (optional)
Drive dimension (L×W×H) 188×131×194mm
Drive weight 4.20kg
Power consumption <50W
Condition temperature 0-40℃
Relative humidity <80%
IP rating IP31

Pump Head Parameter

Drive Pump Head Tubing Size Speed Flow rate(mL/min)
BT300N EasyPump I/III 13#, 14#, 19#, 16#, 25#, 17#, 18# 0.1-350rpm 0.0053-1505
EasyPump II/IV 15#, 24# 0.18-956
AMC1-AMC12(10) Inner diameter:0.13-3.17mm
Wall thickness:0.8-1mm		 0.0002-48(suggestion working speeds ≤150rpm)
AMC1-AMC12(6) 0.0002-65(suggestion working speeds ≤150rpm)
YZ1515x 13#, 14#, 19#, 16#, 25#, 17#, 18# 0.007-1330
YZ2515x 15#, 24# 0.17-1015

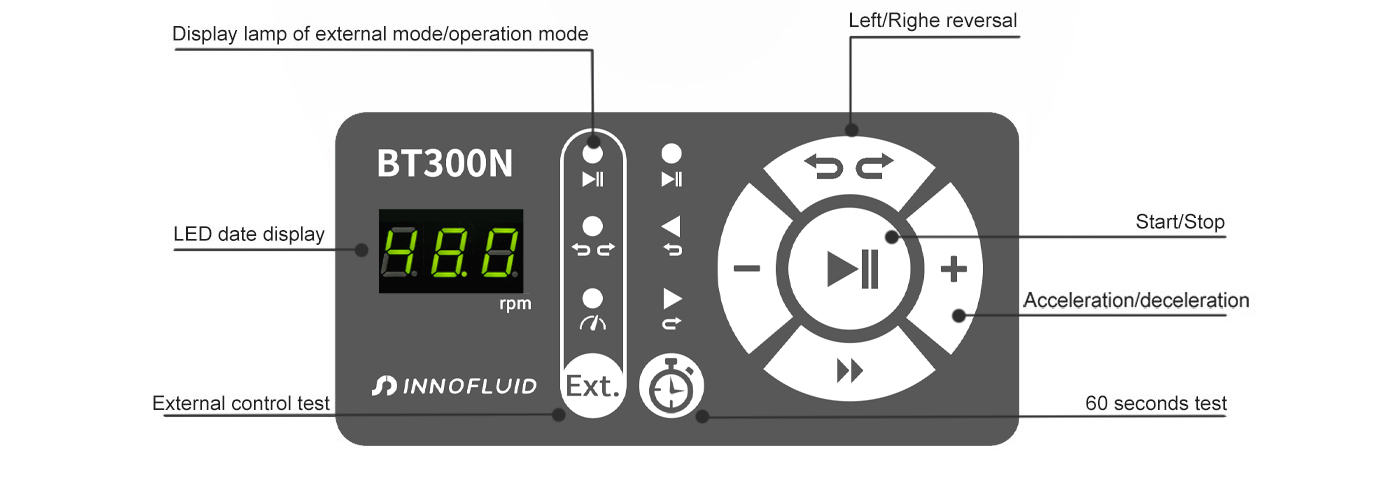

OSD

Dimension（Unit：mm）

Video Tutorials

Button Operation Demonstration
Timing Test Function Demonstration
When the external control indicator light is on, the internal control function buttons are disabled.
Button Operation Demonstration
Timing Test Function Demonstration
When the external control indicator light is on, the internal control function buttons are disabled.
