M6-3L
    Speed range：0.1-600 rpm
    Flow range：0.0053-3100 mL/min
Optional pump head：
EasyPump
Online consultation
Download

Product Introduction

  • Closed-loop stepper motor drive, precise control, strong power, low vibration and low noise.
  • 3-digit digital LED display of motor speed, rotary encoder switch control.
  • Suitable for industrial sites, transferring liquid with large flow and high precision.
  • 304 stainless steel housing, conforming to GMP requirements. Also, adopting seamless welding techniques, avoiding liquid leaking into the pump housing, protecting the internal circuit effectively.
  • Circuit board sprayed with three anti-corrosion paints: anti-dust, anti-moisture, and anti-static.

Technical Parameter

Flow rate range 0.0053-3100mL/min
Speed range 0.1-600rpm
Speed resolution 0-100rpm, 0.1rpm; 100-600rpm, 1rpm
Flow rate accuracy <±0.5%
Motor type Stepper motor/Closed-loop stepper motor
Display 3-digit digital LED
Control method Mechanical keypad
Keypad lifetime 300,000 times
Speed control Rotary encoder switch
External speed control signal 0-5V(standard), 0-10V, 4-20mA(optional)
Start/stop, direction signal Passive switch signal, such as foot pedal; Active switch signal: 24V default
Communication interface RS232(standard), Shenzhen-N232 communication protocol; RS485(optional), Modbus protocol(RTU mode)
Power supply AC 220V±10% 50Hz/60Hz(standard), AC 110V±10% 50Hz/60Hz(optional)
Drive dimension(L×W×H) 230×152×198mm
Drive weight 5.02kg
Power consumption <80W
Condition temperature 0-40℃
Relative humidity <80%

Pump Head Parameter


Pump Head Single/Dual Channel Tubing Wall Thickness(mm) Pressure Adjustable
EasyPump l Single Channel 1.6 No
EasyPump II Single Channel 2.4 No
EasyPump V Dual Channel 1.6 No


Pump Head Single/Dual Channel Tubing Wall Thickness(mm) Pressure Adjustable
EasyPump III Single Channel 1.6 Adjustable
EasyPump IV Single Channel 2.4 Adjustable
EasyPump Vl Dual Channel 1.6 Adjustable


Pump Head Tubing ID×Wall thickness(mm) mL/r Flow Rate(mL/min)
(0.1-600rpm)		 Tubing Max.Pressure(Mpa) Weight(kg)
Intermittent Continuous
Single Channel
EasyPump I/III 		 13# 0.8x1.6 0.053 0.0053-32 0.27 0.17 0.6
14# 1.6x1.6 0.27 0.027-162
19# 2.4x1.6 0.55 0.055-330
16# 3.2x1.6 0.933 0.0933-560
25# 4.8x1.6 1.967 0.1967-1180 0.24 0.14
17# 6.4x1.6 3.333 0.3333-2000 0.14 0.10
18# 7.9x1.6 4.3 0.431-2580 0.10 0.07
Single Channel
EasyPump II/IV
 15# 4.8x2.4 1.8 0.18-1080 0.27 0.17
24#
 6.4x2.4 2.733 0.2733-1640
35# 7.9x2.4 3.833 0.3833-2300 0.24
 0.14
36# 9.6x2.4 5.167 0.5167-3100
Dual Channel
EasyPump V/VI 		 13# 0.8x1.6 0.053 0.0053-32 0.27 0.17
14# 1.6x1.6 0.27 0.027-162
19# 2.4x1.6 0.55 0.055-330
16# 3.2x1.6 0.933 0.0933-560
25# 4.8x1.6 1.967 0.1967-1180 0.24 0.14

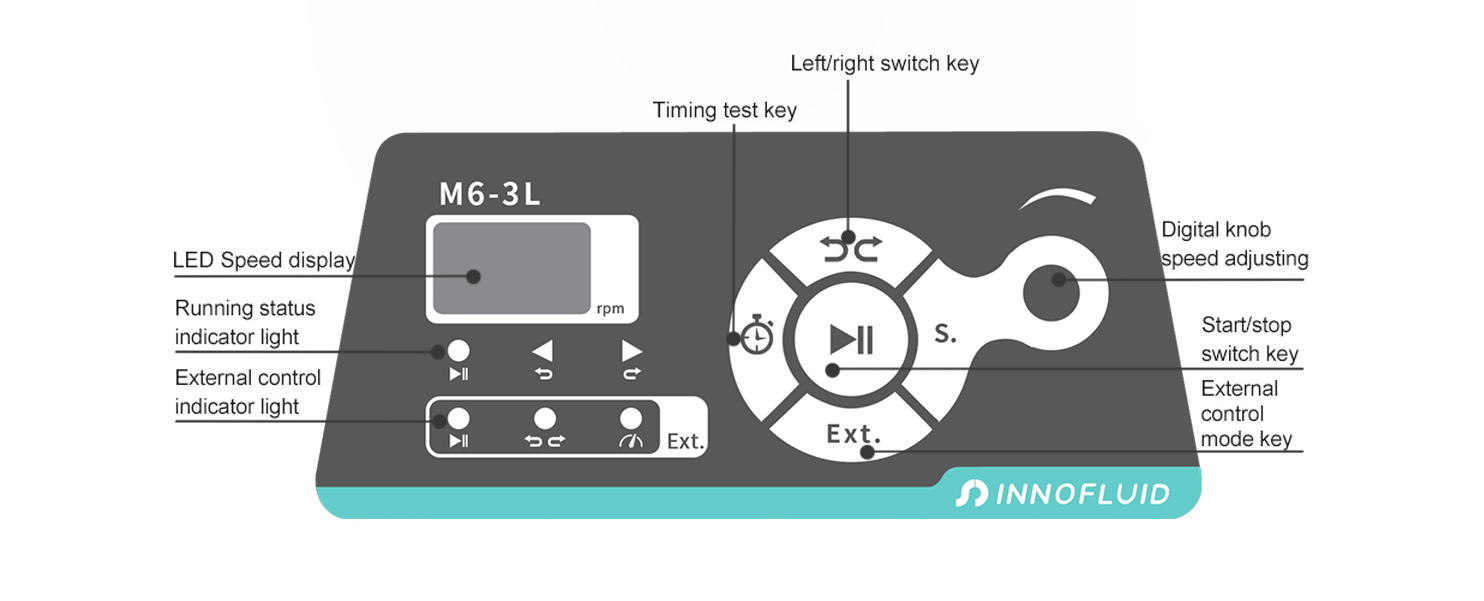

OSD

Dimension（Unit：mm）
