| Flow rate range |
0.3~6000mL/min |
| Speed range |
0.1-600rpm |
| Speed resolution |
0-100rpm, 0.1rpm; 100-600rpm, 1rpm |
| Flow rate accuracy |
<±0.5% |
| Motor type |
Closed-loop stepper motor |
| Display |
3-digit digital LED |
| Control method |
Mechanical keypad |
| Keypad lifetime |
300,000 times |
| Speed control |
Rotary encoder switch |
| External speed control signal |
0-5V(standard), 0-10V, 4-20mA(optional) |
| Start/stop, direction signal |
Passive switch signal, such as foot pedal; Active switch signal: 24V default |
| Communication interface |
RS232(standard), Shenzhen-N232 communication protocol; RS485(optional), Modbus protocol(RTU mode) |
| Power supply |
AC 220V±10% 50Hz/60Hz(standard), AC 110V±10% 50Hz/60Hz(optional) |

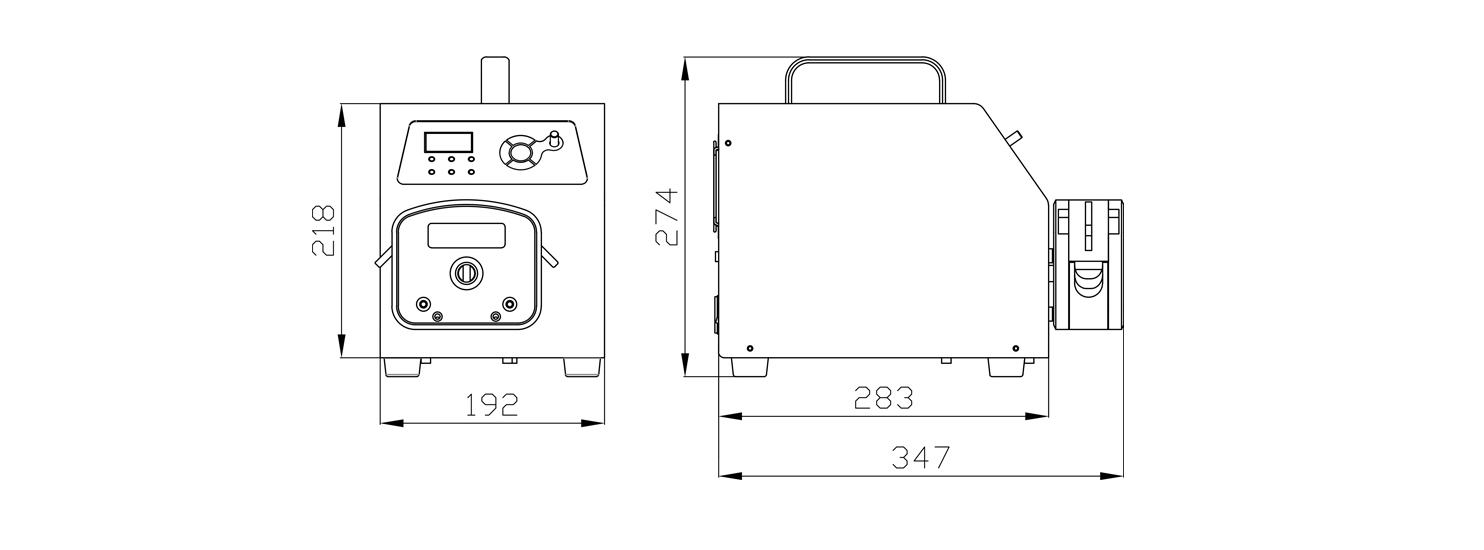

| Drive dimension(L×W×H) |
283×192×274mm |
| Drive weight |
7.85kg |
| Power consumption |
<180W |
| Condition temperature |
0-40℃ |
| Relative humidity |
<80% |
