0.1-600 rpm

0.0053-2580 mL/min

Optional pump head：

EasyPump

AMC

YZ1515x

YZ2515x

Online consultation

Download

Product Introduction

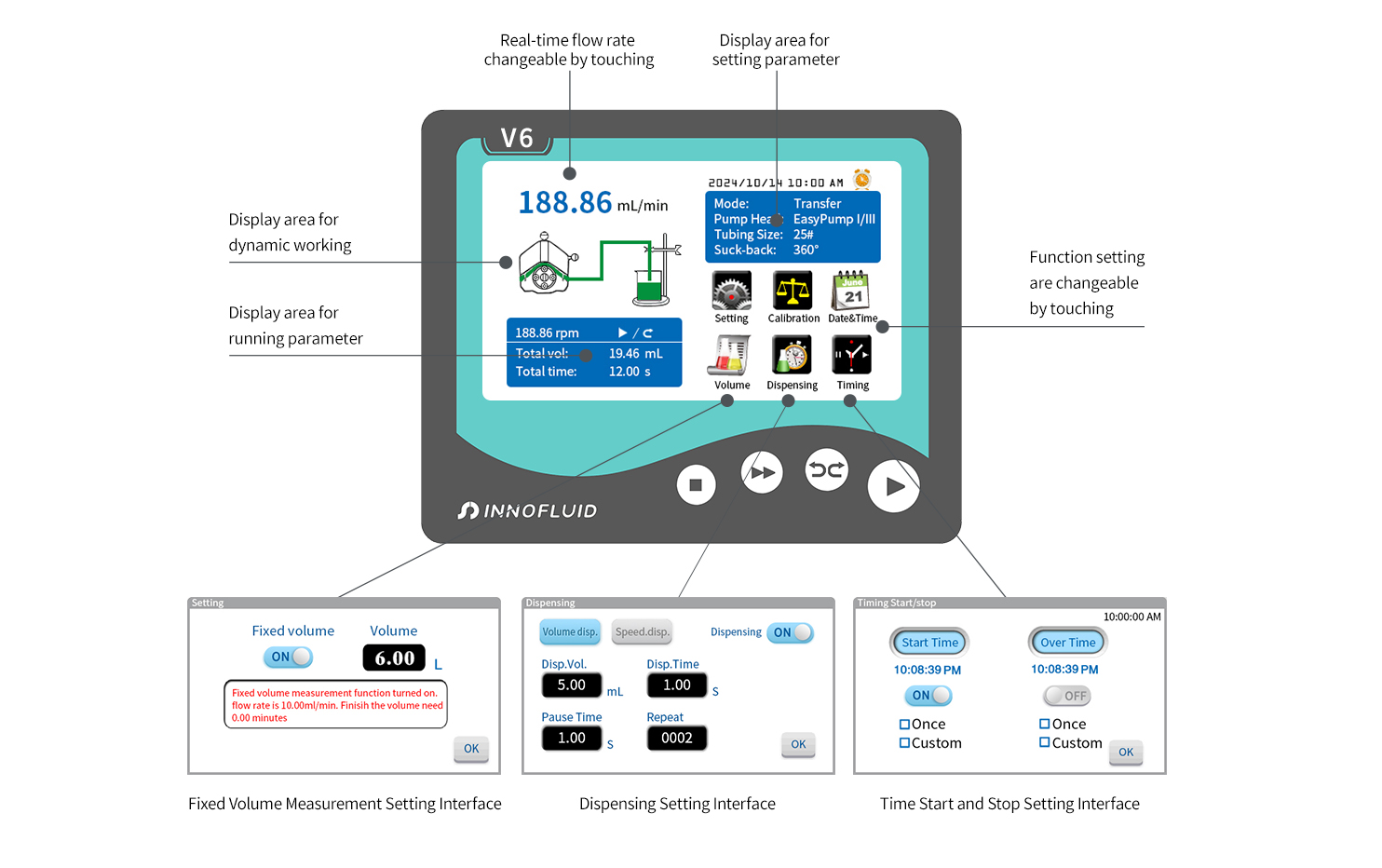

Dynamic display transferring status. Flow rate data, setting parameters and system configuration display in the same screen.
Four-working modes: Fixed volume, volume dispensing, speed dispensing, and timing start/stop functions meet complex transmission and dispensing requirements.
Intelligent calibration function and online micro adiusting function, can be in the case of not stop, adiust the flow, eliminate the error.
Streamlined body design, with ABS Engineering Plastic Shell and add UV Spray Coating.
Circuit board three layers of paint spraying process, dust proof, moisture proof, anti-static, corrosion resistance.

Flow rate range	0.0002-2580 mL/min
Speed range	0.1-600 rpm
Speed resolution	0.01 rpm
Flow rate resolution	0.01 mL
Dispensing volume	0.01-9999mL
Volume resolution	0.01mL
Dispensing time	0.1-9999s
Pause time	0.1-9999s
Time resolution	0.01s
Repeat number	1-9999 times, setting"0" as infinite/continuous dispensing
Flow rate accuracy	< ±0.5%
Back suction angle	0-360°
Motor type	Stepper motor
Display	Industrial grade 4.3" LCD color display
Control method	Touch screen and mechanical keypad
Keypad lifetime	300,000 times
External control signal	0-5V, 0-10V, 4-20mA (for option)
Start/stop, change direction signal	Passive switch signal, such as foot pedal switch; Active switch signal: 5V-24V
Communication interface	RS232, RS485 support MODBUS protocol (RTU mode)
Output interface	Output motor working status (Open-Collector output)
Power supply	AC 220V±10% 50Hz/60Hz (standard), AC 110V±10% 50Hz/60Hz (optional)

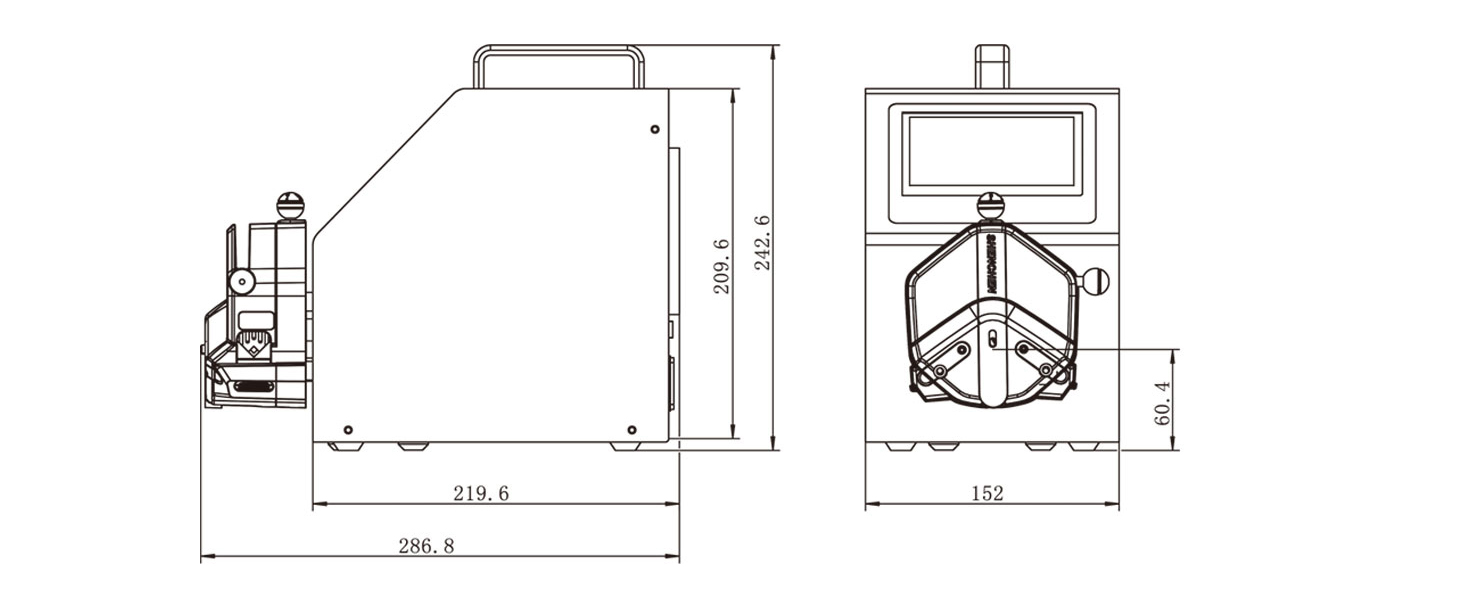

Drive dimension (L×W×H)	219.6×152×211.6 mm
Drive weight	4.20 kg
Power consumption	< 80W
Condition temperature	0-40℃
Relative humidity	< 80%

Drive	Pump Head	Tubing Size	Speed	Flow rate(mL/min)
V6	EasyPump I/III	13#, 14#, 19#, 16#, 25#, 17#, 18#	0.1-600rpm	0.0053-2580
	EasyPump II/IV	——		——
	EasyPump V/VI	13#, 14#, 19#, 16#		0.0053-560
	2*EasyPump I/III	13#, 14#, 19#, 16#, 25#		0.0053-1180
	2*EasyPump II/IV	——		——
	2*EasyPump V/VI	13#, 14#, 19#, 16#		0.0053-560
	AMC1-AMC12(10)	Inner diameter:0.13-3mm Wall thickness:0.8-1mm		0.0002-48(suggestion working speeds ≤150rpm)
	AMC1-AMC12(6)	Inner diameter:0.13-3mm Wall thickness:0.8-1mm		0.0002-65(suggestion working speeds ≤150rpm)
	YZ1515x	13#, 14#, 19#, 16#, 25#, 17#, 18#		0.007-2280
	YZ2515x	15#, 24#		0.17-1740
