V6-3L
    Speed range：0.1-600 rpm
    Flow range：0.0053-3100 mL/min
Optional pump head：
EasyPump
Online consultation
Download

Product Introduction

  • Dynamic display transferring status. Flow rate data, setting parameters and system configuration display in the same screen.
  • Four-working modes: Fixed volume, volume dispensing, speed dispensing, and timing start/stop functions meet complex transmission and dispensing requirements.
  • Intelligent calibration function and online micro adiusting function, can be in the case of not stop, adiust the flow, eliminate the error.
  • Streamlined body design, with ABS Engineering Plastic Shell and add UV Spray Coating.
  • Circuit board three layers of paint spraying process, dust proof, moisture proof, anti-static, corrosion resistance.

Technical Parameter

Flow rate range 0.0053~3100 mL/min
Speed range 0.1-600 rpm
Speed resolution 0.01 rpm
Flow rate resolution 0.01 mL
Dispensing volume 0.01-9999mL
Volume resolution 0.01mL
Dispensing time 0.1-9999s
Pause time 0.1-9999s
Time resolution 0.01s
Repeat number 1-9999 times, setting"0" as infinite/continuous dispensing
Flow rate accuracy < ±0.5%
Back suction angle 0-360°
Motor type Closed-loop stepper motor
Display Industrial grade 4.3" color LCD display
Control method Touch screen and mechanical keypad
Keypad lifetime 300,000 times
External speed control signal 0-5V, 0-10V, 4-20mA
Start/stop, direction signal Passive switch signal, such as foot pedal switch; Active switch signal: 5V-24V
Communication interface RS232, RS485 support MODBUS protocol (RTU mode)
Output interface Output motor working status (Open-Collector output)
Power supply AC 220V±10% 50Hz/60Hz (standard), AC 110V±10% 50Hz/60Hz (optional)
Drive dimension 223×152×231 mm
Drive weight 5.02 kg
Power consumption < 80W
Environment temperature 0-40℃
Relative humidity < 80%

Pump Head Parameter

Pump Head Single/Dual Channel Tubing Wall Thickness(mm) Pressure Adjustable
EasyPump l Single Channel 1.6 NO
EasyPump II Single Channel 2.4 NO
EasyPump III Single Channel 1.6 Adjustable
EasyPump IV
 Single Channel
 2.4 Adjustable
EasyPump V
 Dual Channel
 1.6 NO
EasyPump VI
 Dual Channel
 1.6 Adjustable


Pump Head Tubing lDxWall
thickness(mm)		 mL/r Flow Rate(mL/min)
(0.1-600rpm)		 Tubing Max.Pressure(Mpa) Weight(kg)
Intermittent Continuous
Single Channel
EasyPump I/III		 13# 0.8x1.6 0.053 0.0053-32 0.27 0.17 0.6
14# 1.6x1.6 0.27 0.027-162
19# 2.4x1.6 0.55 0.055-330
16# 3.2x1.6 0.933 0.0933-560
25# 4.8x1.6 1.967 0.1967-1180 0.24 0.14
17# 6.4x1.6 3.333 0.3333-2000 0.14 0.10
18# 7.9x1.6 4.3 0.43-2580 0.10 0.07
Single Channel
EasyPump II/IV
 15# 4.8x2.4 1.8 0.18-1080 0.27 0.17
24# 6.4x2.4 2.733 0.2733-1640
35# 7.9x2.4 3.833 0.3833-2300 0.24 0.14
36# 9.6x2.4 5.167 0.5167-3100
Dual Channel
EasyPump V/VI		 13# 0.8x1.6 0.053 0.0053-32 0.27 0.17
14# 1.6x1.6 0.27 0.027-162
19# 2.4x1.6 0.55 0.055-330
16# 3.2x1.6 0.933 0.0933-560
25# 4.8x1.6 1.967 0.1967-1180 0.24 0.14

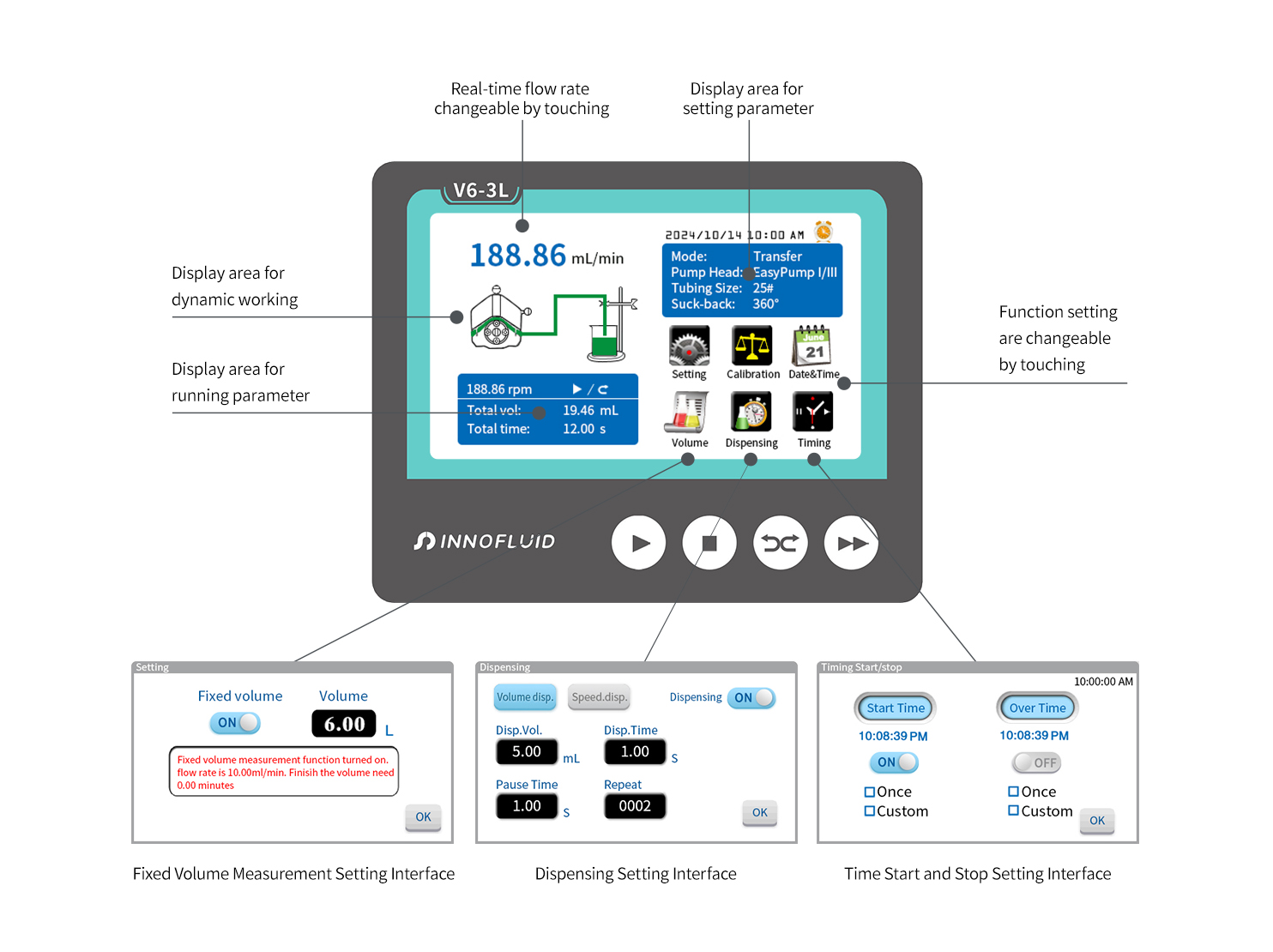

OSD

Dimension（Unit：mm）
