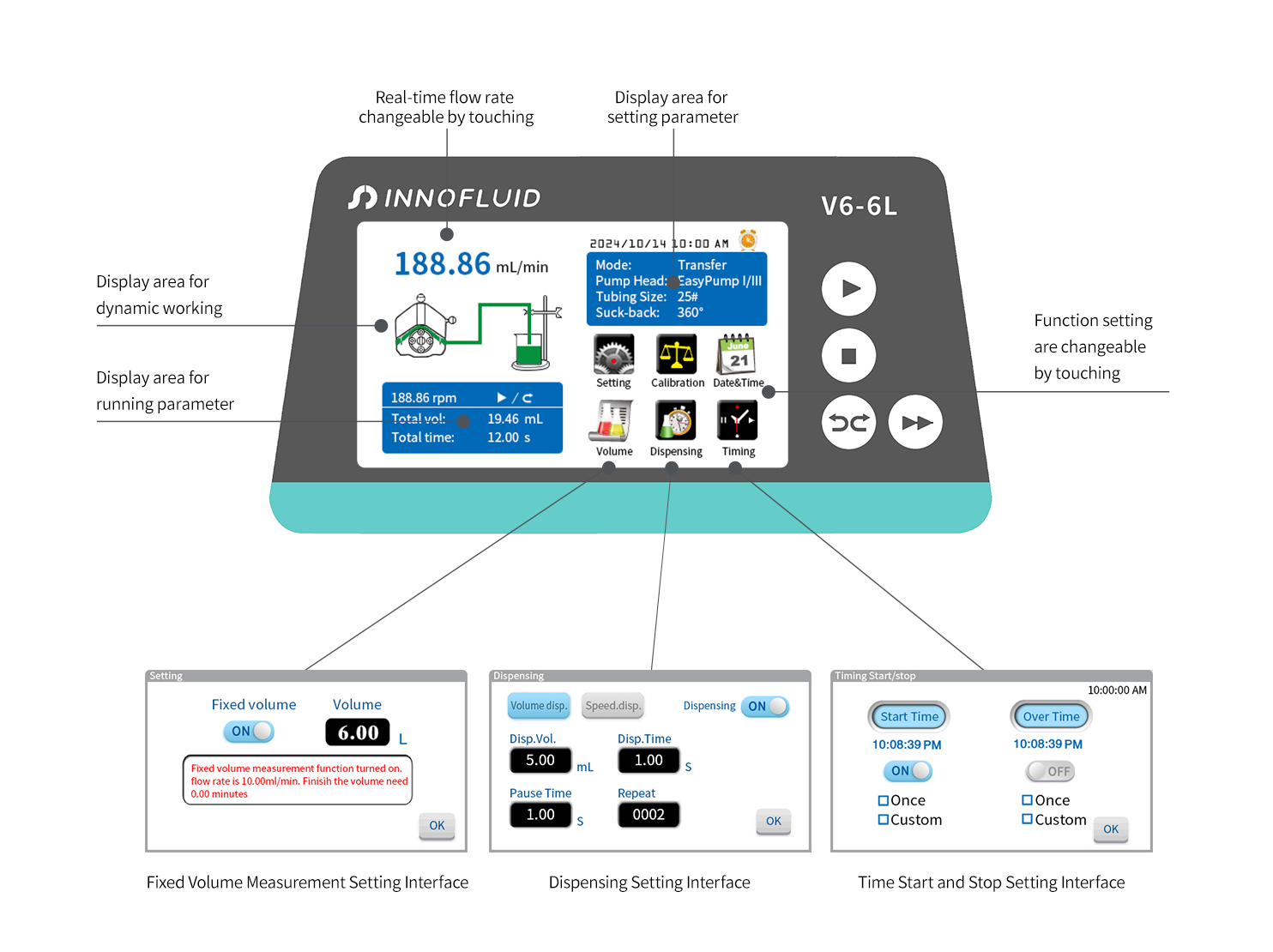

- Dynamic display transferring status. Flow rate data, setting parameters and system configuration display in the same screen.
- Four-working modes: Fixed volume, volume dispensing, speed dispensing, and timing start/stop functions meet complex transmission and dispensing requirements.
- Intelligent calibration function and online micro adiusting function, can be in the case of not stop, adiust the flow, eliminate the error.
- Streamlined body design, with ABS Engineering Plastic Shell and add UV Spray Coating.
- Circuit board three layers of paint spraying process, dust proof, moisture proof, anti-static, corrosion resistance.
| Drive | Motor Type | Pump Head | Tubing Size | Speed range(rpm) | Flow rate(mL/min) |
| V6-6L | Closed-loop stepper motor | DZ25-6L | 15#，24#，35#，36# | 0.1-600 | 0.3-6000 |
Basic Setup Demonstration
Flow Calibration Demonstration
Fixed Volume Measurement Demonstration
Timed Dispensing Demonstration
Timed Start/stop Demonstration
