N6-3L
    Speed range：0.1-600 rpm
    Flow range：0.0053-3100 mL/min
Optional pump head：
EasyPump
Online consultation
Download

Product Introduction

  • 3.2-inch LCD display, mute drive setting, accurate control, low vibration and low noise.
  • Mechanical button control, menu-type interface, convenient for users to set various parameters at any time.
  • With timing distribution function, the time range is 0.1 second to 9999 hours, the repetition number setting range is 1-9999 times, and setting 0 is unlimited times.
  • External control function, supports 0-5V, 0-10V, 4-20mA three kinds of analog signal speed regulation, supports RS232/RS485 communication, standard MODBUS communication protocol (RTU mode).
  • Power-down memory function to store data in time; strong anti-interference, wide voltage design, suitable for complex working environment.
  • Quick filling function, which can clean the hose and fill the pipeline with liquid.
  • High torque, low power consumption, can connect multiple pump heads in series, or install multi-channel pump heads to meet different application needs.

Technical Parameter

Flow rate range 0.0053~3100 mL/min
Speed range 0.1-600 rpm
Flow rate accuracy < ±0.5%
Speed resolution 0.1 rpm
Fixed time dispensing function 0.1s-9999 h
Control method Mechanical keypad + Rotary encoded switch
Display 3.2" high definition LCD screen
Start/stop, direction signal Passive switch signal, such as foot pedal switch; Active switch signal: 5V-24V
External speed control signal 0-5V, 0-10V, 4-20mA (for option)
Output interface Output motor working status (Open-Collector output)
Power supply AC 220V±10% 50Hz/60Hz (standard), AC 110V±10% 50Hz/60Hz (optional)
Power consumption < 80W
Communication interface RS232, RS485 support MODBUS protocol (RTU mode)
Motor type Closed-loop stepper motor
Copy numbers 1-9999 times, setting '0' means unlimited
Drive dimension (L×W×H) 223×152×199 mm
Drive weight 5.06 kg
Relative humidity < 80%
Environment temperature 0-40℃
Back suction angle 0-360°

Pump Head Parameter


Pump Head Single/Dual Channel Tubing Wall Thickness(mm) Pressure Adjustable
EasyPump l Single Channel 1.6 No
EasyPump II Single Channel 2.4 No
EasyPump V Dual Channel 1.6 No


Pump Head Single/Dual Channel Tubing Wall Thickness(mm) Pressure Adjustable
EasyPump III Single Channel 1.6 Adjustable
EasyPump IV Single Channel 2.4 Adjustable
EasyPump Vl Dual Channel 1.6 Adjustable


Pump Head Tubing ID×Wall thickness(mm) mL/r Flow Rate(mL/min)
(0.1-600rpm)		 Tubing Max.Pressure(Mpa) Weight(kg)
Intermittent Continuous
Single Channel
EasyPump I/III 		 13# 0.8x1.6 0.053 0.0053-32 0.27 0.17 0.6
14# 1.6x1.6 0.27 0.027-162
19# 2.4x1.6 0.55 0.055-330
16# 3.2x1.6 0.933 0.0933-560
25# 4.8x1.6 1.967 0.1967-1180 0.24 0.14
17# 6.4x1.6 3.333 0.3333-2000 0.14 0.10
18# 7.9x1.6 4.3 0.431-2580 0.10 0.07
Single Channel
EasyPump II/IV
 15# 4.8x2.4 1.8 0.18-1080 0.27 0.17
24#
 6.4x2.4 2.733 0.2733-1640
35# 7.9x2.4 3.833 0.3833-2300 0.24
 0.14
36# 9.6x2.4 5.167 0.5167-3100
Dual Channel
EasyPump V/VI 		 13# 0.8x1.6 0.053 0.0053-32 0.27 0.17
14# 1.6x1.6 0.27 0.027-162
19# 2.4x1.6 0.55 0.055-330
16# 3.2x1.6 0.933 0.0933-560
25# 4.8x1.6 1.967 0.1967-1180 0.24 0.14

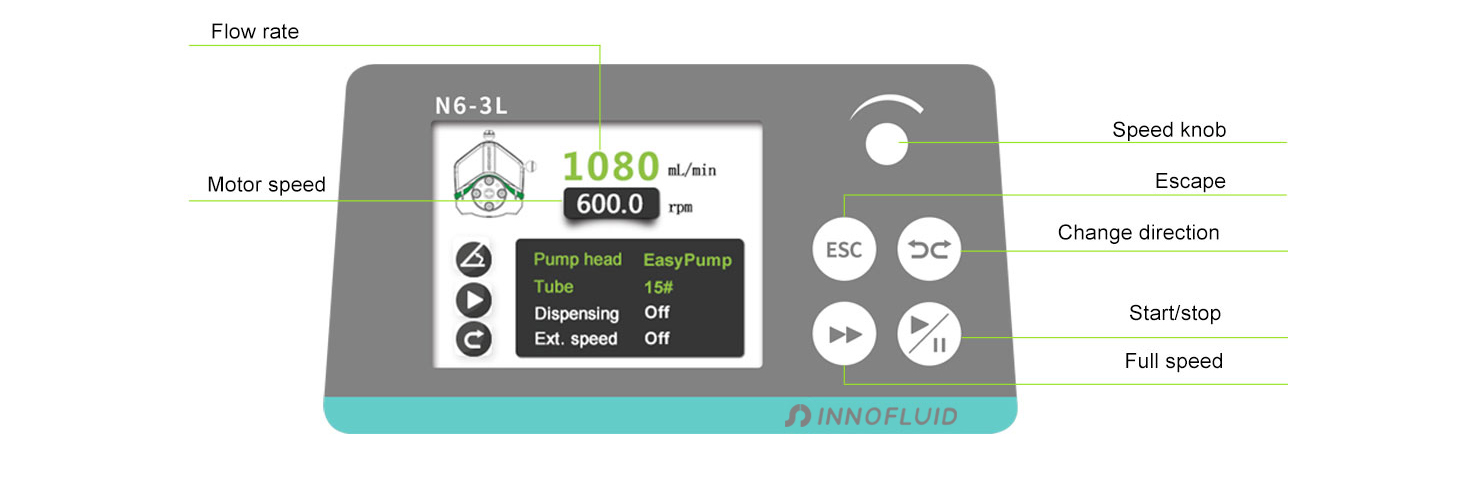

OSD

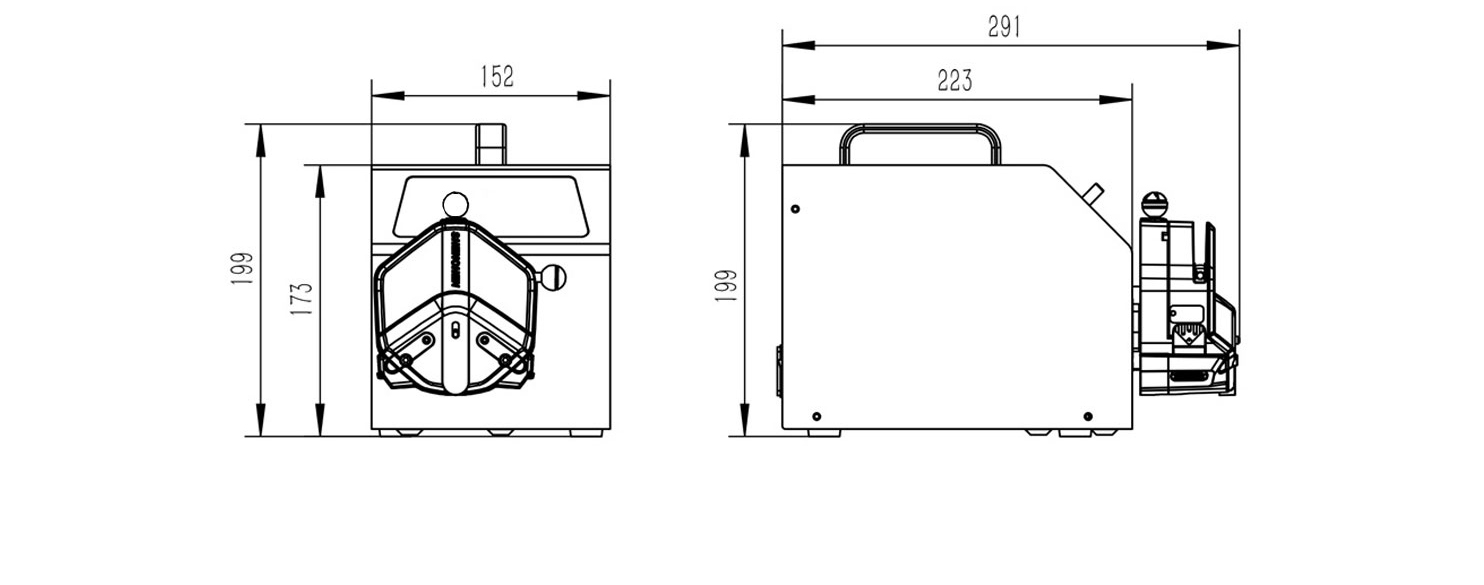

Dimension（Unit：mm）
