N6-6L
    Speed range：0.1-600 rpm
    Flow range：0.3-6000 mL/min
Optional pump head：
DZ25-6L
Online consultation
Download

Product Introduction

  • 3.2-inch LCD display, mute drive setting, accurate control, low vibration and low noise.
  • Mechanical button control, menu-type interface, convenient for users to set various parameters at any time.
  • With timing distribution function, the time range is 0.1 second to 9999 hours, the repetition number setting range is 1-9999 times, and setting 0 is unlimited times.
  • External control function, supports 0-5V, 0-10V, 4-20mA three kinds of analog signal speed regulation, supports RS232/RS485 communication, standard MODBUS communication protocol (RTU mode).
  • Power-down memory function to store data in time; strong anti-interference, wide voltage design, suitable for complex working environment.
  • Quick filling function, which can clean the hose and fill the pipeline with liquid.
  • High torque, low power consumption, can connect multiple pump heads in series, or install multi-channel pump heads to meet different application needs.

Technical Parameter

Flow rate range 0.3~6000 mL/min
Speed range 0.1-600 rpm
Flow rate accuracy < ±0.5%
Speed resolution 0.1 rpm
Fixed time dispensing function 0.1s-9999 h
Control method Mechanical keypad + Rotary encoded switch
Display 3.2" high definition LCD screen
Start/stop, direction signal Passive switch signal, such as foot pedal switch; Active switch signal: 5V-24V
External speed control signal 0-5V, 0-10V, 4-20mA (for option)
Output interface Output motor working status (Open-collector output)
Power supply AC 220V±10% 50Hz/60Hz (standard), AC 110V±10% 50Hz/60Hz (optional)
Power consumption < 180W
Communication interface RS232, RS485 support MODBUS protocol (RTU mode)
Motor type Closed-loop stepper motor
Copy numbers 1-9999 times, setting '0' means unlimited
Drive dimension (L×W×H) 283×192×274 mm
Drive weight 7.88 kg
Relative humidity < 80%
Environment temperature 0-40℃
Back suction angle 0-360°

Pump Head Parameter

Drive Motor Type Pump Head Tubing Size Speed range(rpm) Flow rate(mL/min)
N6-6L Closed-loop stepper motor DZ25-6L 15#，24#，35#，36# 0.1-600 0.3-6000

OSD

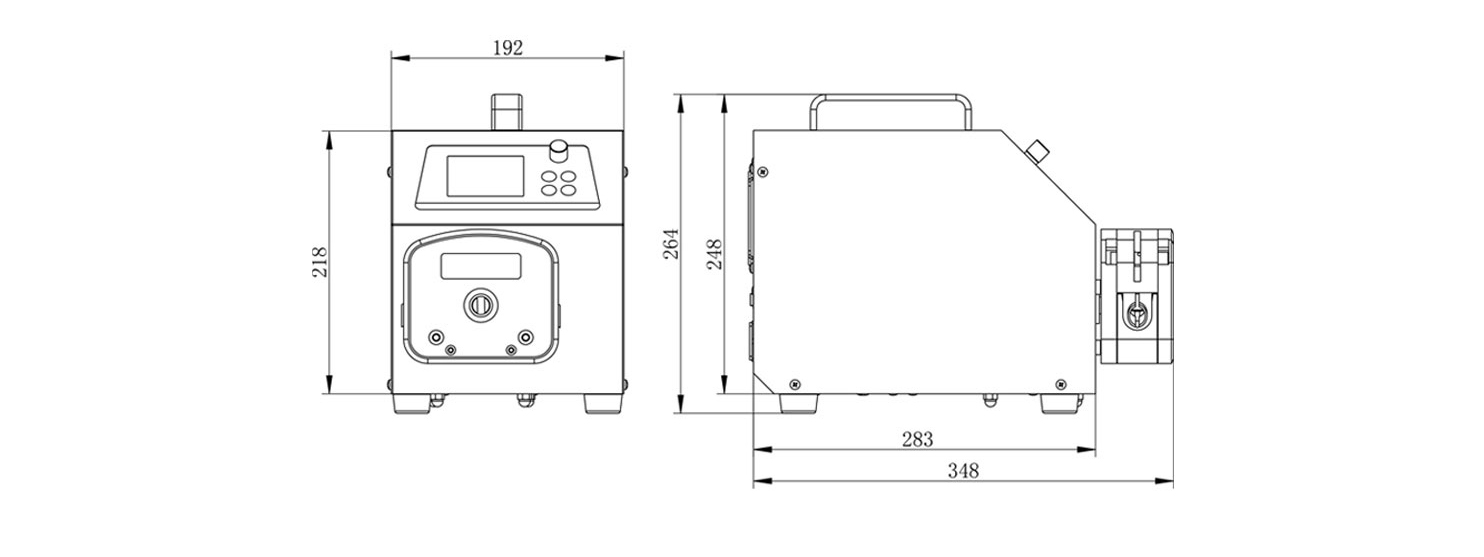

Dimension（Unit：mm）
