HP350/DY15
    Speed range：0.1-350 rpm
    Flow range：0.01-3337 mL/min
Optional pump head：
DY15
Online consultation
Download

Product Introduction

  • IP66/IP67/IP68 protection rating, specially designed for industrial environments.
  • Intelligent control system.
  • Passed EMC test with excellent anti-electromagnetic interference performance.
  • The automatic pressure control device ensures internal and external pressure balance.
  • The external control interface provides circuit isolation for both internal and external circuits.
  • High-precision servo motor.
  • Casting shell with excellent heat dissipation performance.

Technical Parameter

Standard IEC 60529:2013, Q/BSC01-2019
Housing material Aluminum Alloy
Speed range 0.1-350rpm
Speed resolution 0.01rpm
Display 4.3 inch - Industrial grade - True color LCD screen
Control method Touch screen, mechanical buttons, external signal, communication
Working mode Flow rate mode, Dispensing mode
Flow rate mode Continuous transferring according to the set flow rate or motor speed
Dispensing mode Fixed time and volume dispensing: Set the dispensing volume, dispensing time, repeat number and pause time;
Fixed volume dispensing: Set the dispensing volume, flow rate, repeat number and pause time;
Speed/time dispensing: Set the motor speed (rpm), dispensing time, repeat number and pause time
Dispensing volume 0.1mL-9999L
Dispensing time 0.1sec-9999hours
Pause time 0.5sec-9999sec
Repeat number 1-9999 times, 0 represents unlimited
Calibration function Input actual volume and calibrate automatically
Back suction angle 0-360°
Communication RS485, RS232
Communication protocol Modbus protocol (RTU mode)
External control speed signal 0-5V, 0-10V, 4-20mA (For option)
External control signal input Active switch signal (5-24V) control start/stop, direction and full speed; Passive switch signal control start/stop
Signal output Open collector output working status
Lock screen function Prevent accidental touches
Password protection function Prevent misoperation
Drive dimension 428mm*285mm*335mm(L×W×H)
Power supply AC 220V±10% 50Hz/60Hz
Rated power 300W
Relative humidity < 100%
Condition temperature 0-40°C
IP rate IP66/IP67/IP68
Drive weight 21.5kg

Pump Head Parameter

Drive Pump
Head		 Housing
Material		 Tube Clamp
Material		 Tubing mL/r Speed
(rpm)		 Flow Rate
(mL/min)		 Weight(kg)
Size ID×Wall Thickness(mm)
HP350 DY15 Aluminum
alloy		 Polyamide 13# 0.8×1.6 0.14 0.1-350 0.01-48 3.2
14# 1.6×1.6 0.64 0.06-223
19# 2.4×1.6 1.28 0.13-448
16# 3.2×1.6 2.07 0.2-723
25# 4.8×1.6 4.65 0.47-1626
17# 6.4×1.6 6.37 0.64-2230
18# 7.9×1.6 9.53 0.95-3337

Drive Pump Head Tubing Filling Volume(mL) Filling Time(s) Accuracy(±%) Output(pcs/min) Motor Speed(rpm)
HP350 DY15 13# 0.5 0.8 0.8 33 273.4
13# 1 1.2 0.5 27 364.6
14# 0.5 0.5 1 30 94.2
14# 1 0.6 0.8 38 157.0
14# 3 1 0.5 30 282.6
19# 5 1 0.8 30 234.4
16# 15 1.5 0.5 24 290.4
25# 20 1 0.5 30 258.3
17# 30 1 0.5 30 282.5
18# 100 2.5 0.5 17 251.7

OSD

Qualification Certificate

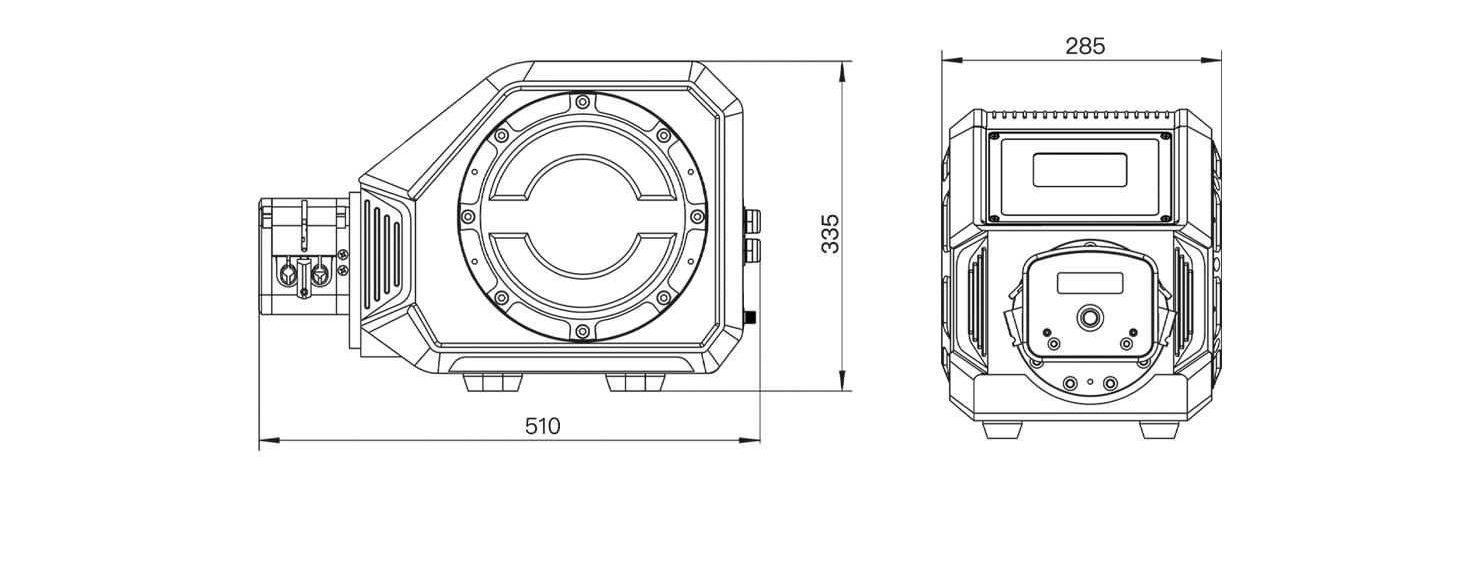

Dimension（Unit：mm）
