HP300/DZ45
    Speed range：0.1-300 rpm
    Flow range：0.0019-28.15 L/min
Optional pump head：
DZ45
Online consultation
Download

Product Introduction

  • IP66/IP67/IP68 protection rating, specially designed for industrial environments.
  • Intelligent control system.
  • Passed EMC test with excellent anti-electromagnetic interference performance.
  • The automatic pressure control device ensures internal and external pressure balance.
  • The external control interface provides circuit isolation for both internal and external circuits.
  • High-precision servo motor.
  • Casting shell with excellent heat dissipation performance.

Technical Parameter

EMC Standard IEC 61000-6-2/IEC 61000-6-4/IEC 61000-3-2/IEC 61000-3-3
Housing material Aluminum alloy
Speed range 0.1-300 rpm
Speed resolution 0.01 rpm
Display 4.3-inch industrial-grade true color LCD screen
Control method Touch screen, mechanical buttons, external signal, communication
Working mode Flow rate mode, dispensing mode
Flow rate mode Continuous transferring according to the set flow rate or motor speed
Dispensing mode Fixed time and volume dispensing: Set the dispensing volume, dispensing time, repeat number and pause time;
Fixed volume dispensing: Set the dispensing volume, flow rate, repeat number and pause time;
Speed/time dispensing: Set the motor speed (rpm), dispensing time, repeat number and pause time
Dispensing volume 0.1 mL - 9999 L
Dispensing time 0.1 s - 9999 hours
Pause time 0.5 s - 9999 s
Repeat number 1-9999 times, 0 represents unlimited
Calibration function Input actual volume and calibrate automatically
Back suction angle 0-360°
Communication RS485, RS232
Communication protocol Modbus protocol (RTU mode)
External control speed signal 0-5 V, 0-10 V, 4-20 mA (optional)
External control signal input Active switch signal (5-24 V) controls start/stop, direction and full speed; Passive switch signal controls start/stop
Signal output Open collector output working status
Lock screen function Prevent accidental touches
Password protection function Prevent misoperation
Drive dimension 428 × 285 × 335 mm (L×W×H)
Power supply AC110-220V±10%,50Hz/60Hz
Rated power 300 W
Relative humidity <100%
Condition temperature 0-40 °C
IP rating IP66/IP67/IP68
Drive weight 21.5 kg

Pump Head Parameter

Drive Pump Head Housing
Material		 Tube Clamp/
Connector Material		 Tubing L/r Speed
(rpm)		 Flow Rate
(L/min)		 Weight(kg)
Size ID×Wall Thickness(mm)
HP300 DZ45 Aluminum
alloy		 Aluminum
alloy		 193# 9.6×4.8 0.019 0.1-300 0.0019-5.66 10
88# 12.7×4.8 0.035 0.0035-10.5
189# 15.9×4.8 0.047 0.0047-13.98
191# 19.4×4.8 0.063 0.0063-18.78
92# 25.4×4.8 0.104 0.1-270 0.0104-28.15


OSD

Qualification Certificate

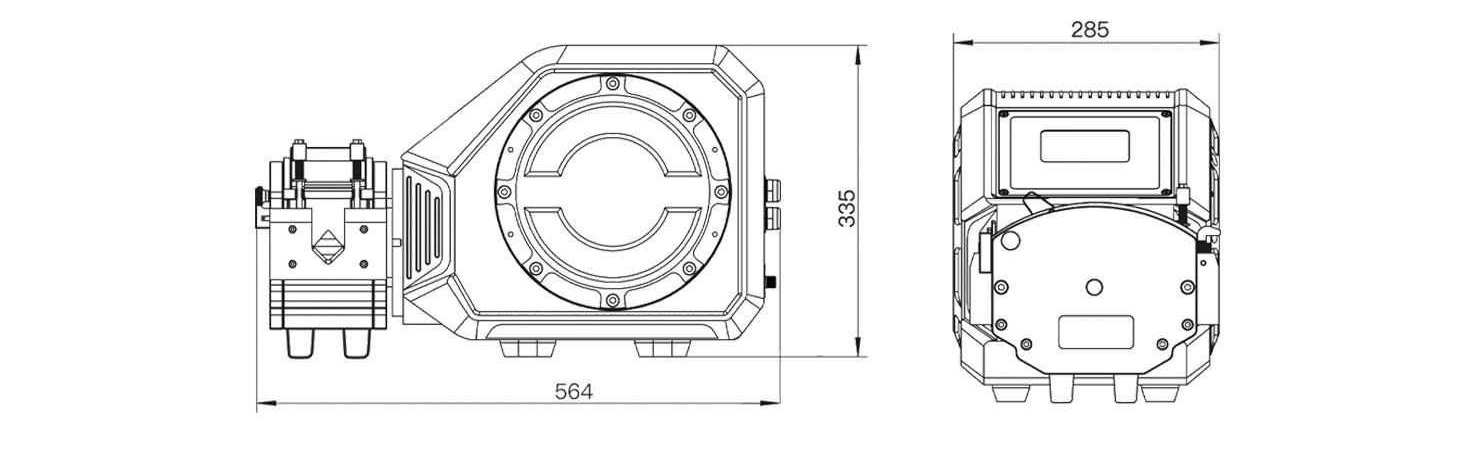

Dimension（Unit：mm）
