HPM600/KD15/KD25
5-Year Warranty
    Speed range：0.1-600 rpm
    Flow range：0.0079-3027.97 mL/min
Optional pump head：
KD15
KD25
Online consultation
Download

Product Introduction

  • The pump shell protection level is IP66, specially designed for industrial environments. It features 6 types of sealing structures that withstand extreme humidity and temperature conditions, ensuring long-term stable operation.
  • The intelligent control system supports both transferring and dispensing functions.
  • The 4.3-inch touch screen enables simplified operation, parameter configuration, and calibration.
  • Circuit isolation is achieved both inside and outside the external control interface.
  • Aluminum alloy body with excellent heat dissipation performance.
  • Three levels of permissions management function.

Technical Parameter

EMC Standard IEC 61000-6-2/IEC 61000-6-4/IEC 61000-3-2/IEC 61000-3-3
Housing material Aluminum alloy
Speed range 0.1-600 rpm
Speed adjustment resolution 0.01 rpm
Display 4.3-inch industrial-grade color LCD screen
Control modes Touch screen, mechanical keypad, external control signal, communication control
Working modes Transferring mode, dispensing mode (Fixed volume, dispensing, speed dispensing)
Transferring mode Continuous operation at set flow rate and speed
Dispensing mode Dispensing:Set volume, time, repeat numbers, pause time
Dispensing:Set volume, flow rate, repeat numbers, pause time
Speed dispensing:Set speed (rpm), time, repeat numbers, pause time
Dispensing volume range 0.1 mL - 9999 L
Dispensing time range 0.1 s - 9999 h
Pause time range 0.5 s - 9999 h
Repeat numbers 1-9999 times, 0 means unlimited times
Calibration Automatic calibration after inputting actual liquid volume
Back suction angle 0-360°
Communication interface RS485
Communication protocol Modbus protocol (RTU mode)
External control speed signal 0-5 V, 0-10 V, 4-20 mA (optional)
External control signal input Active switch signal (5-24 V) controls start/stop, direction; Passive switch signal controls start/stop
Signal output Open collector output operation status; 4-20 mA output
Open cover to stop pump function Prevent misoperation and protect user safety
Three levels of permissions Reasonable configuration of operation permissions
Drive dimension 274 × 160 × 221 mm (L×W×H)
Power supply AC 110-220 V ±10%, 50/60 Hz
Rated power 110 W
Working environment 0-40 °C
Drive weight 6.2 kg
Relative humidity <100%
Protection level IP66

Pump Head Parameter

Drive Pump Head Tubing Size Speed Flow rate(mL/min)
HPM600 KD15 13#, 14#, 19#, 16#, 25#, 17#, 18# 0.1-600rpm 0.0079-3027.97
KD25 15#, 24# 0.1979-2346.95

OSD

Qualification Certificate

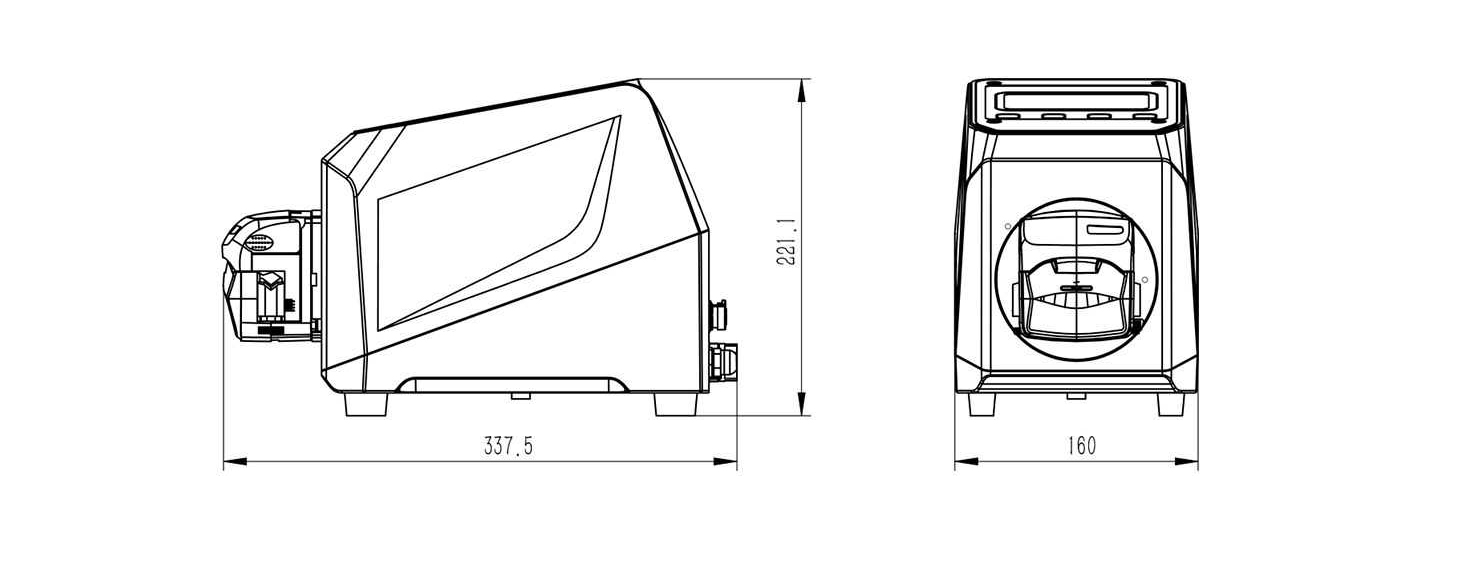

Dimension（Unit：mm）
