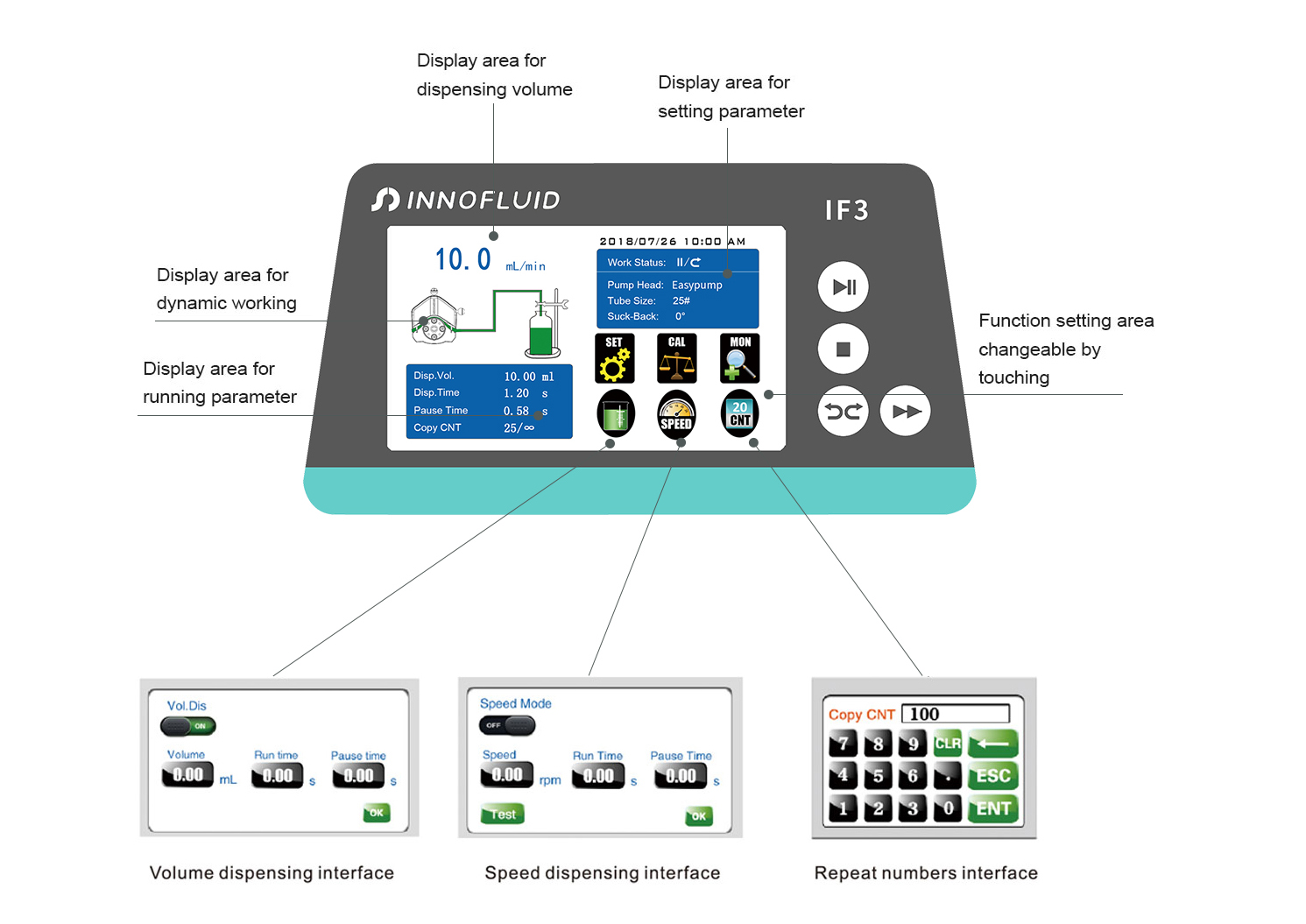

Servo motor-driven, intelligent, high-precision, low-pulse dispensing peristaltic pump. Features an imported 4.3-inch industrial-grade true color LCD screen with touch-screen control. Speed range: 0.1-350 rpm, flow rate range: 0.01-4340 mL/min. The low-pulsation pump head is specially designed for high-precision filling. Through the phase difference between the two sets of rollers, the fluid peaks and valleys complement each other.
Industry application: Dispensing small-volume diagnostic reagent.
| Product Composition and Flow Rate Range |
| Drive | Motor Type | Pump Head | Tubing Size | Speed range(rpm) | Flow rate(mL/min) |
| IF3 | Servo | DY15 | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 0.1-350 | 0.01-3337 |
| DY25 | 15#, 24#, 35#, 36# | 0.42-4340 |
| Filling Volume Reference (Media is water) |
| Drive | Pump Head | Tubing | Filling Volume（mL） | Filling Time（s） | Accuracy（±%） | Output（pcs/min） | Motor Speed（rpm） |
| IF3 | DY15 | 14# | 0.5 | 0.5 | 0.3 | 60 | 94.1915 |
| 14# | 1 | 1 | 0.4 | 30 | 94.1915 | ||
| 14# | 2 | 1 | 0.6 | 30 | 188.383 | ||
| 19# | 3 | 1 | 0.3 | 30 | 140.625 | ||
| 16# | 5 | 1 | 0.5 | 30 | 145.278 | ||
| 25# | 10 | 1 | 0.3 | 30 | 129.143 | ||
| 25# | 15 | 1 | 0.4 | 30 | 193.715 | ||
| 17# | 30 | 1 | 0.4 | 30 | 282.530 | ||
| 18# | 100 | 2.5 | 0.3 | 17 | 251.730 | ||
| DY25 | 15# | 10 | 1 | 0.3 | 30 | 141.911 | |
| 24# | 30 | 1 | 0.5 | 27 | 235.972 | ||
| 35# | 70 | 1.2 | 0.4 | 27 | 340.466 | ||
| 36# | 100 | 2 | 0.2 | 20 | 241.935 |
