Product Introduction

Intelligent-type flow rate peristaltic pump with ABS engineering plastic shell and UV spray coating for anti-corrosion and anti-static functions. Streamlined body design, industrial-grade 4.3-inch color display with touch-screen control. Speed range: 0.1–600 rpm, flow rate range: 0.0053–3100 ml/min. Supports RS232 and RS485 interfaces with standard Modbus communication protocol. Achieves external control under different industrial conditions. It is the ideal choice for laboratory, instrument, and industrial production. The rich external control mode offers arbitrary choice and features a unique programmable external control mode.

Technical Parameter

Flow rate range	0.0053-3100 mL/min
Flow rate resolution	0.01 mL/min
Speed range	0.1-600 rpm
Speed resolution	0.01 rpm
Dispensing volume	0.01-9999 mL
Volume resolution	0.01 mL
Dispensing time	0.1-9999 s
Pause time	0.1-9999 s
Time resolution	0.01 s
Repeat number	1-9999 times, setting "0" as infinite/continuous dispensing
Flow rate accuracy	<±0.5%
Back suction angle	0-360°
Motor type	Stepper motor
Display	4.3-inch industrial grade true color LCD screen
Control method	Touch screen and mechanical keypad
Keypad lifetime	300,000 times
External control signal	0-5V, 0-10V, 4-20mA (optional)
Start/stop, change direction signal	Passive switch signal (e.g. foot pedal switch); Active switch signal: 5-24V
Communication interface	RS232, RS485 support Modbus protocol (RTU mode)
Output interface	Output motor working status (open-collector output)
Power supply	220V±10% 50Hz/60Hz (standard), 110V±10% 50Hz/60Hz (optional)
Drive dimension	259×157×237 mm (L×W×H)
Drive weight	4.40 kg
Power consumption	<80 W
Condition temperature	0-40℃
Relative humidity	<80%

PRODUCT INTRODUCTION

Product Composition and Flow Rate Range

Pump Head	Tubing	ID×Wall thickness(mm)	mL/r	Flow Rate(mL/min) (0.1-600rpm)	Tubing Max.Pressure(Mpa)		Weight(kg)
Pump Head	Tubing	ID×Wall thickness(mm)	mL/r	Flow Rate(mL/min) (0.1-600rpm)	Intermittent	Continuous	Weight(kg)
Single Channel EasyPump I/III	13#	0.8x1.6	0.053	0.0053-32	0.27	0.17	0.6
	14#	1.6x1.6	0.27	0.027-162
	19#	2.4x1.6	0.55	0.055-330
	16#	3.2x1.6	0.933	0.0933-560
	25#	4.8x1.6	1.967	0.1967-1180	0.24	0.14
	17#	6.4x1.6	3.333	0.3333-2000	0.14	0.10
	18#	7.9x1.6	4.3	0.431-2580	0.10	0.07
Single Channel EasyPump II/IV	15#	4.8x2.4	1.8	0.18-1080	0.27	0.17
	24#	6.4x2.4	2.733	0.2733-1640	0.27	0.17
	35#	7.9x2.4	3.833	0.3833-2300	0.24	0.14
	36#	9.6x2.4	5.167	0.5167-3100	0.24	0.14
Dual Channel EasyPump V/VI	13#	0.8x1.6	0.053	0.0053-32	0.27	0.17
	14#	1.6x1.6	0.27	0.027-162
	19#	2.4x1.6	0.55	0.055-330
	16#	3.2x1.6	0.933	0.0933-560
	25#	4.8x1.6	1.967	0.1967-1180	0.24	0.14

Filling Volume Reference Parameter(Media is water)

Drive	Pump Head	Tubing	Filling Volume（mL）	Filling Time（s）	Accuracy（±%）	Output（pcs/min）	Motor Speed（rpm）
LabV6-III	EasyPump	13#	0.4	1.2	0.8	27	377.36
		13#	1	2.5	0.5	17	452.83
		14#	2	1	0.5	30	444.44
		19#	5	1.2	0.5	27	454.55
		16#	7	1	0.5	30	450.16
		25#	10	0.8	0.8	33	381.29
		25#	15	1	0.5	30	457.55
		25#	20	1.5	0.5	24	406.71
		17#	30	1.2	0.5	27	450.05
		18#	50	1.5	0.5	24	465.12
		15#	15	1.2	0.5	27	416.67
		24#	20	1.2	0.5	27	365.90
		35#	30	1.2	0.5	27	391.34
		36#	50	1.5	0.5	24	387.07
	2*EasyPump	13#	0.5	0.8	0.8	33	353.77
		13#	1	1.2	0.5	27	471.70
		14#	2	0.6	1	38	370.37
		14#	5	1.5	0.5	24	370.37
		19#	10	1.2	0.5	27	454.55
		16#	15	1.2	0.5	27	401.93
		16#	20	1.5	0.5	24	428.72
		25#	30	1	0.5	30	457.55
		17#	50	1	0.5	30	450.05
		18#	70	1	0.5	30	488.37
		15#	30	1.2	0.5	27	416.67
		24#	50	1.2	0.5	27	457.37
		35#	70	1.2	0.5	27	456.56
		36#	100	1.5	0.5	24	387.07

OSD

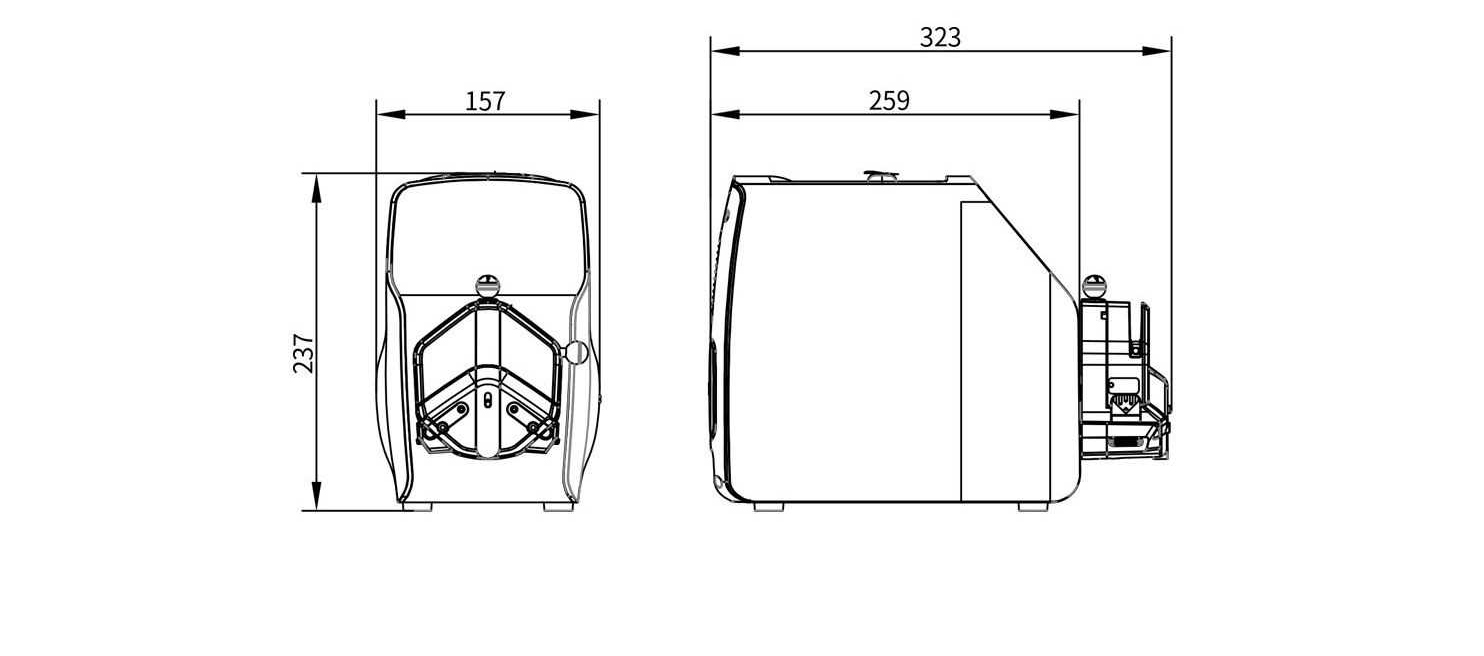

Dimension（Unit：mm）

Video Tutorials

Basic Setup Demonstration

Open Head Stop Running Demo

Intelligent Calibration Demo

Liquid Dispensing Demo

Speed Dispensing Demo

Timing Start/stop Demo
