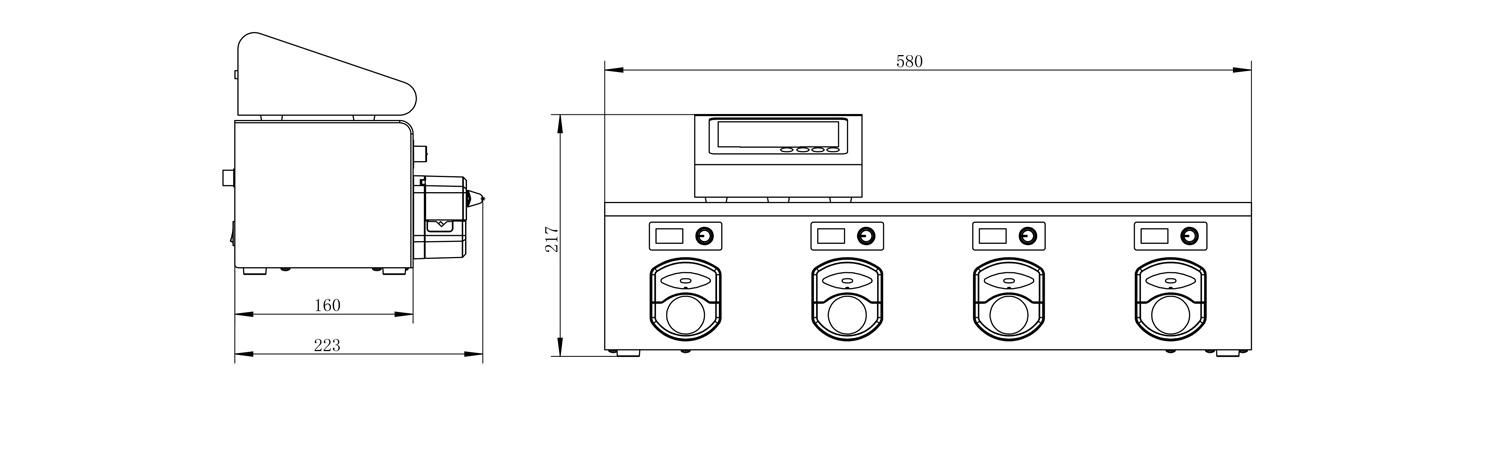

KF300 servo-control series split-type intelligent filling system with high precision and low pulsation, driven by servo motor. It consists of one controller and several (total 32) filling units. You can add or delete filling units according to different requirements. Features a 4.3-inch true color touch-screen display.
Industry applications: Supports pharmaceutical machinery, filling equipment, pharmaceuticals, cosmetics, food, beverage dispensing, and oral liquid filling.
| Product Composition and Flow Rate Range |
| Model | Pump Head | Speed Range(rpm) | Tubing | Flow Rate(mL/min) |
| KF300 Plus | HandyPump | 0.1-300 | 13#，14#，19#，16#，25# | 0.0033-365.69 |
| Filling Volume Reference(Media is water) |
| Drive | Pump Head | Tubing | mL/r | Filling Volume（mL） | Filling Time （s） |
Accuracy （±%） |
Output （pcs/min） |
Motor Speed（rpm） |
| KF300 Plus | HandyPump (6) |
13# | 0.031 | 0.05 | 0.4 | 3 | 43 | 241.94 |
| 13# | 0.031 | 0.1 | 0.8 | 2 | 33 | 241.94 | ||
| 13# | 0.031 | 0.2 | 1.5 | 1 | 24 | 258.06 | ||
| 13# | 0.031 | 0.5 | 3 | 0.5 | 15 | 322.58 | ||
| 14# | 0.126 | 1 | 1.5 | 0.8 | 24 | 317.46 | ||
| 19# | 0.215 | 2 | 2.5 | 0.5 | 17 | 223.26 | ||
| 16# | 0.345 | 3 | 2 | 0.5 | 20 | 260.87 | ||
| HandyPump (3) |
13# | 0.033 | 0.2 | 1.5 | 1 | 24 | 242.42 | |
| 14# | 0.187 | 1.5 | 2 | 0.8 | 20 | 240.64 | ||
| 19# | 0.371 | 3 | 2 | 0.5 | 20 | 242.59 | ||
| 16# | 0.636 | 5 | 2 | 0.8 | 20 | 235.85 | ||
| 25# | 1.219 | 10 | 2 | 0.5 | 20 | 246.10 |
