PDS II
3-Year Warranty

Product Introduction

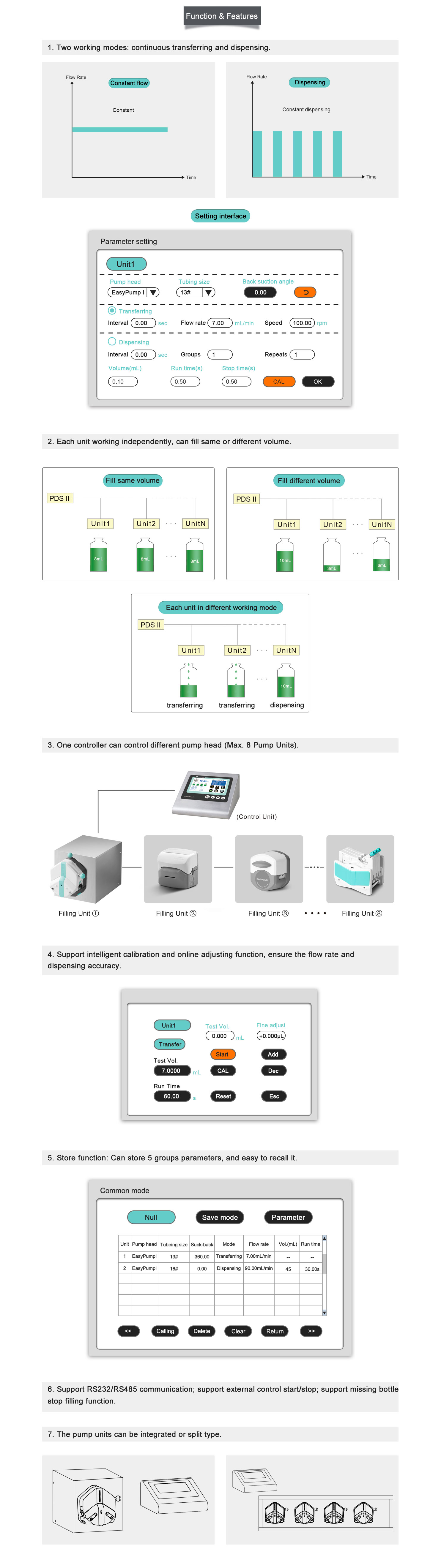

  • 7 inch touch screen control, easy and convenient operation.
  • One controller can control maximum 8 pump units.
  • Each unit working with same or different parameters.
  • Pump units can be separately or integrated.
  • Different pump units can fit for same or different pump heads.
  • Pump can be cotrolled with touch screen, foot switch, switch signal and communication.
  • Two working modes: continuous transferring and dispensing.
  • Each unit woking independenty, can fill same or different volume.
  • Support intelligent calibration and online adjusting function ensure the flow rate and dispensing accuracy.
  • Store RS232/RS485 communication; support external control start/stop; support missing bottle stop filling function.
  • The pump can be integrated or split type.



Technical Parameter

Volume resolution 0.01mL
Time resolution 0.01s
Back suction angle 0~360°
Store 5 parameter programs can be stored and easily recalled
External control method Passive switch signal: Foot pedal, Active switch signal: Universal 5~24V
Communication method RS232/RS485, supports Modbus protocol(RTU mode)
Pump unit power supply AC 220V±10% 50Hz/60Hz(Standard), AC 110V±10% 50Hz/60Hz(Optional)
Controller power supply 5VDC/2A adapter(Standard)
Temperature 0~40℃
Relative humidity ＜80%
IP rate IP31
