LabM1
3-Year Warranty
    Speed range：0.1-150rpm
    Flow range：0.0053-645mL/min
Optional pump head：
EasyPump
AMC
YZ Series
Online consultation
Download

Product Introduction

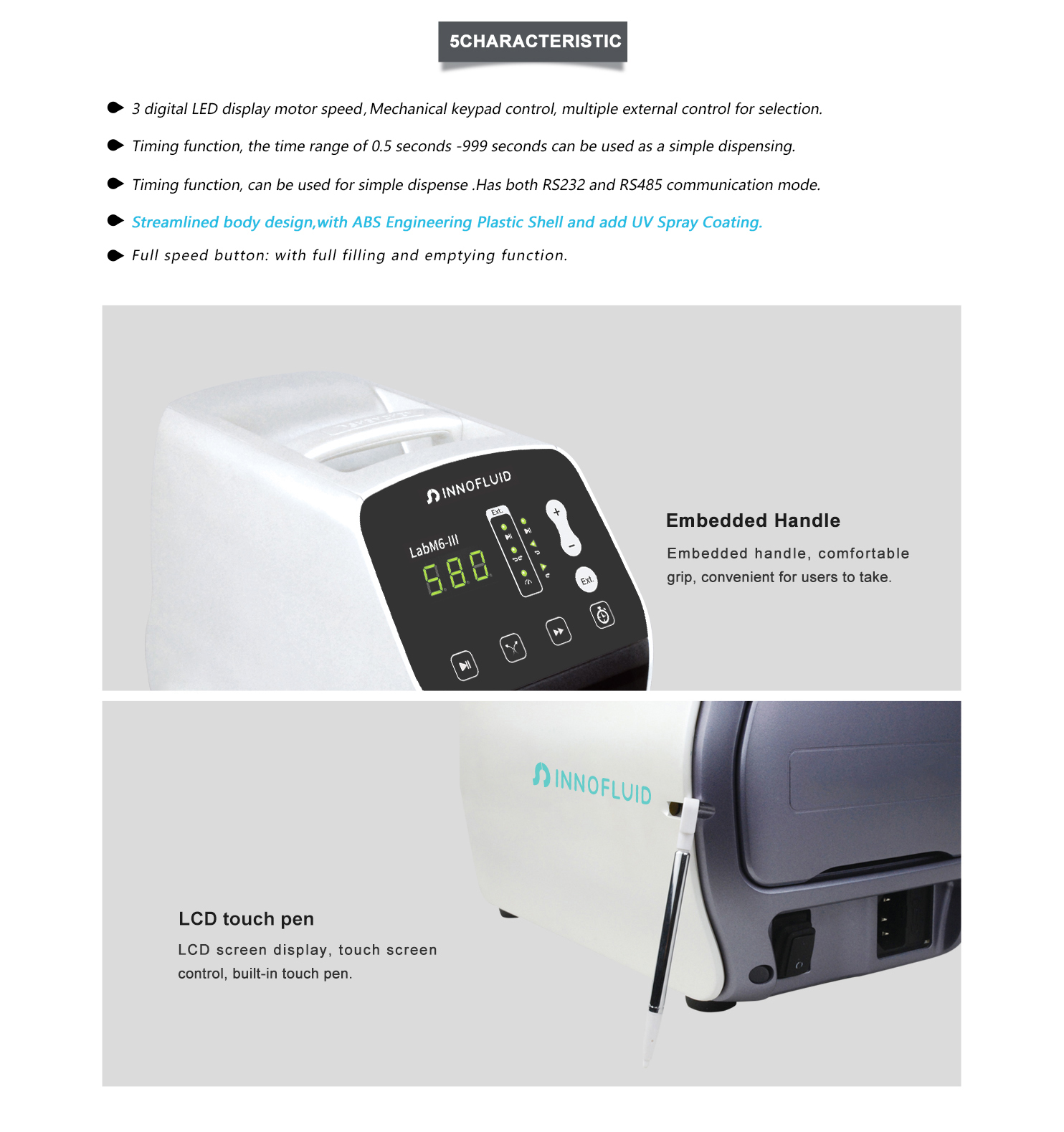

  • 3 digital LED display motor speed, mechanical keypad control, multiple external control for selection.
  • Timing function, the time range of 0.5 seconds -999 seconds can be used as a simple dispensing.
  • Timing function, can be used for simple dispense. Has both RS232 and RS485 communication mode.
  • Streamlined body design, with ABS Engineering Plastic Shell and add UV Spray Coating.
  • Full speed button: with full filling and emptying function.

Technical Parameter

Flow rate range 0.0002-645mL/min
Speed range 0.1-150rpm
Speed resolution 0.1 rpm
Testing time range 0.5s-999s
Outlet pressure 0.1Mpa (0.8-1.0mm wall thickness tubing) 0.1-0.27Mpa ( 1.6-2.4mm wall thickness tubing)
Back suction angle 0-360°
Display 3 digital LED
Control method Mechanical keypad
Keypad lifetime 300,000 times
External control speed signal 0-5V,0-10V,4-20mA for option
Start/stop, direction signal Passive switch signal, such as foot pedal switch Active switch signal,default 24V
Communication interface RS232/RS485 support MODBUS protocol (RTU mode)
Power supply AC 220V±10%,50Hz/60Hz(standard),AC 110V±10%, 50Hz/60Hz (optional)
Drive dimension 323x157x237(LxWxH)
Drive weight 4.40kg
Power consumption <80W
Environment temperature 0-40℃
Relative humidity <80%
IP rate IP31

Pump Head Parameter

Pump head Tubing Size Speed Flow rate(mL/min)
EasyPumpI/III 13#,14#,19#,16#.25#,17#,18# 0.1-150rpm 0.0053-645
EasyPumpll/IV 15#,24# 0.18-410
EasyPumpV/VI 13#,14#,19#,16#,25# 0.0053-295
2*EasyPumpI/III 13#,14#,19#,16#,25# 0.0053-295
2*EasyPumpll/IV 15# 0.18-270
2*EasyPumpV/VI 13#,14#,19#,16# 0.0053-140
AMC1-AMC12(10) ID:0.13-3mm,Wall thickness:0.8-1mm 0.0002-48(suggestion working speed≤150rpm)
AMC1-AMC12(6) ID:0.13-3mm,Wall thickness:0.8-1mm 0.0002-65(suggestion working speed≤150rpm)
YZ1515x 13#,14#,19#,16#,25#,17#,18# 0.007-570
YZ2515x 15#,24# 0.17-435

AMC Series Pump Head Technical Specifications

Channel number 1 2 3 4 5 6 8 10 12
Cartridge material POM/PVDF
Rollers material 304 stainless steel material
Rollers number 6rollers, 10rollers


Tubing Speed Flow rate of pump head
with 10 rollers (mL/min)		 Flow rate of pump head
with 6 rollers (mL/min)		 Tubing maximumpressure(Mpa)
Continuous  Intermittent
1x1 0.1-150rpm 0.0050~7.55 0.0062~9.36 0.1 0.1
2x1 0.0183~27.52 0.0220~33.06
2.4x0.8 0.0254~38.13 0.0319~47.81
3x1 0.0323~48.38 0.0434~65.17
0.13x0.86 0.0002~0.29 0.0002~0.31
0.19x0.86 0.0003~0.44 0.0003~0.46
0.25x0.86 0.0005~0.76 0.0005~0.80
0.51x0.86 0.0013~2.00 0.0014~2.05
0.89x0.86 0.0030~4.47 0.0031~4.65
1.14x0.86 0.0061~9.16 0.0065~9.74
1.42x0.86 0.0125~18.75 0.0142~21.28
2.06x0.86 0.0197~29.60 0.0234~35.17
2.79x0.86 0.0286~42.86 0.0372~55.77


Pump Head & Flow Rate


Pump Head Tubing lDxWall
thickness(mm)		 mL/r Flow Rate(mL/min)
(0.1-150rpm)		 Tubing Max.Pressure(Mpa) Weight(kg)
Intermittent Continuous
Single Channel
EasyPump I/III		 13# 0.8x1.6 0.053 0.0053-8 0.27 0.17 0.6
14# 1.6x1.6 0.27 0.027-41
19# 2.4x1.6 0.55 0.055-83
16# 3.2x1.6 0.933 0.0933-140
25# 4.8x1.6 1.967 0.1967-295 0.24 0.14
17# 6.4x1.6 3.333 0.3333-500 0.14 0.10
18# 7.9x1.6 4.3 0.43-645 0.10 0.07
Single Channel
EasyPump II/IV		 15# 4.8x2.4 1.8 0.18-270 0.27 0.17
24# 6.4x2.4 2.733 0.2733-410
Dual Channel
EasyPump V/VI		 13# 0.8x1.6 0.053 0.0053-8 0.27 0.17
14# 1.6x1.6 0.27 0.027-41
19# 2.4x1.6 0.55 0.055-83
16# 3.2x1.6 0.933 0.0933-140
25# 4.8x1.6 1.967 0.1967-295 0.24 0.14

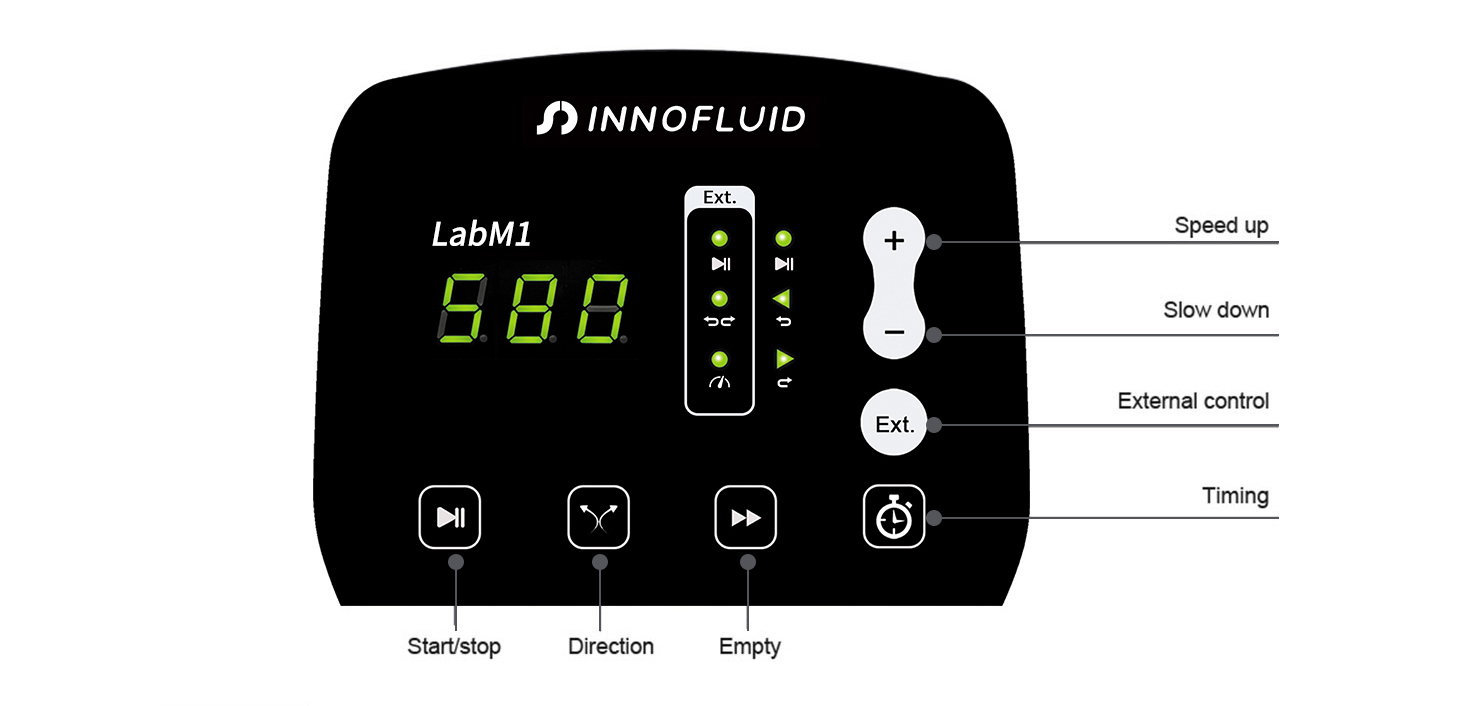

OSD

Dimension（Unit：mm）
