LabN1

3-Year Warranty

0.1-150rpm

0.0053-645mL/min

Optional pump head：

EasyPump

AMC

YZ Series

Online consultation

Download

Product Introduction

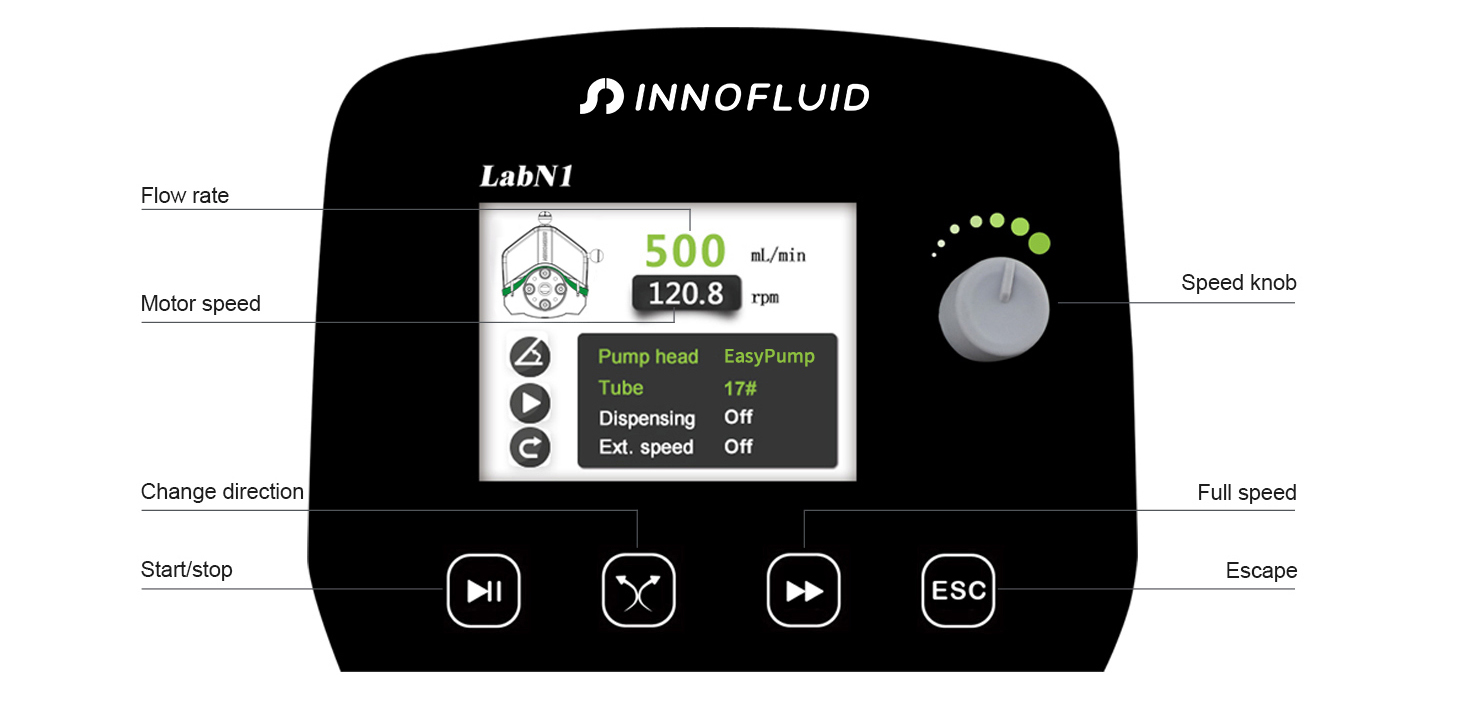

Friendly interface, 3.2 inch big screen LCD display working parameters in real time.
Super silent drive setting, precise control, low vibration and low noise.
Timing function, the time range is 0.1s - 9999 hours, can be used for simple dispensing function.
Streamlined body design, with ABS Engineering Plastic Shell and add UV Spray Coating.
Power down memory function, store parameters in time, safe and reliable. Strong anti-jamming feature, wide voltage design, suitable for complex power supply environment.

Flow rate range	0.0002-645mL/min
Speed resolution	0.1rpm
Back suction angle	0-360°
Testing time range	0.1s-9999h
Display	3.2" color LCD screen display
Motor type	Closed-loop stepper motor
Control system	Mechanical keypad+Rotary encoded switch
Keypad lifetime	300,000 times
External control speed signal	0-5V,0-10V,4-20mA for option
Start/stop.direction siqnal	Passive switch signal, such as foot pedal switch; Active switch signal: 5V-24V
Communication interface	RS232, RS485 support Modbus protocol(RTU mode)
Output interface	Output motor working status (Open-Collector output)
Power supply	AC 220V±10%,50Hz/60Hz(standard), AC 110V±10%, 50Hz/60Hz (optional)
Drive dimension	259x157x237mm(LxWxH)
Drive weight	4.40kg
Power consumption	< 80W
Environment temperature	0-40°C
Relative humidity	<80%

Pump head	Tubing Size	Speed	Flow rate(mL/min)
EasyPumpI/III	13#,14#,19#,16#.25#,17#,18#	0.1-150rpm	0.0053-645
EasyPumpll/IV	15#,24#		0.18-410
EasyPumpV/VI	13#,14#,19#,16#,25#		0.0053-295
2*EasyPumpI/III	13#,14#,19#,16#,25#		0.0053-295
2*EasyPumpll/IV	15#		0.18-270
2*EasyPumpV/VI	13#,14#,19#,16#		0.0053-140
AMC1-AMC12(10)	ID:0.13-3mm,Wall thickness:0.8-1mm		0.0002-48(suggestion working speed≤150rpm)
AMC1-AMC12(6)	ID:0.13-3mm,Wall thickness:0.8-1mm		0.0002-65(suggestion working speed≤150rpm)
YZ1515x	13#,14#,19#,16#,25#,17#,18#		0.007-570
YZ2515x	15#,24#		0.17-435

AMC Series Pump Head Technical Specifications

Tubing	Speed	Flow rate of pump head with 10 rollers (mL/min)	Flow rate of pump head with 6 rollers (mL/min)	Tubing maximumpressure(Mpa)
Tubing	Speed	Flow rate of pump head with 10 rollers (mL/min)	Flow rate of pump head with 6 rollers (mL/min)	Continuous	Intermittent
1x1	0.1-150rpm	0.0050~7.55	0.0062~9.36	0.1	0.1
2x1		0.0183~27.52	0.0220~33.06
2.4x0.8		0.0254~38.13	0.0319~47.81
3x1		0.0323~48.38	0.0434~65.17
0.13x0.86		0.0002~0.29	0.0002~0.31
0.19x0.86		0.0003~0.44	0.0003~0.46
0.25x0.86		0.0005~0.76	0.0005~0.80
0.51x0.86		0.0013~2.00	0.0014~2.05
0.89x0.86		0.0030~4.47	0.0031~4.65
1.14x0.86		0.0061~9.16	0.0065~9.74
1.42x0.86		0.0125~18.75	0.0142~21.28
2.06x0.86		0.0197~29.60	0.0234~35.17
2.79x0.86		0.0286~42.86	0.0372~55.77

Pump Head & Flow Rate

Pump Head	Tubing	lDxWall thickness(mm)	mL/r	Flow Rate(mL/min) (0.1-150rpm)	Tubing Max.Pressure(Mpa)		Weight(kg)
Pump Head	Tubing	lDxWall thickness(mm)	mL/r	Flow Rate(mL/min) (0.1-150rpm)	Intermittent	Continuous	Weight(kg)
Single Channel EasyPump I/III	13#	0.8x1.6	0.053	0.0053-8	0.27	0.17	0.6
	14#	1.6x1.6	0.27	0.027-41
	19#	2.4x1.6	0.55	0.055-83
	16#	3.2x1.6	0.933	0.0933-140
	25#	4.8x1.6	1.967	0.1967-295	0.24	0.14
	17#	6.4x1.6	3.333	0.3333-500	0.14	0.10
	18#	7.9x1.6	4.3	0.43-645	0.10	0.07
Single Channel EasyPump II/IV	15#	4.8x2.4	1.8	0.18-270	0.27	0.17
Single Channel EasyPump II/IV	24#	6.4x2.4	2.733	0.2733-410	0.27	0.17
Dual Channel EasyPump V/VI	13#	0.8x1.6	0.053	0.0053-8	0.27	0.17
	14#	1.6x1.6	0.27	0.027-41
	19#	2.4x1.6	0.55	0.055-83
	16#	3.2x1.6	0.933	0.0933-140
	25#	4.8x1.6	1.967	0.1967-295	0.24	0.14
